Class to manage a DMA channel. More...

#include <hw_dma.h>

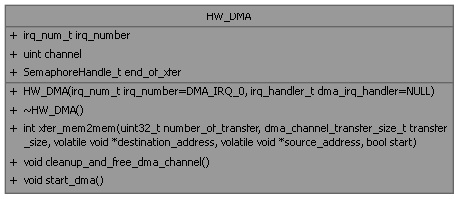

Collaboration diagram for HW_DMA:

Public Member Functions
	HW_DMA (irq_num_t irq_number=DMA_IRQ_0, irq_handler_t dma_irq_handler=NULL)
	constructor of the DMA class

	~HW_DMA ()
	Destructor of the class, free the allocated DMA channel.

int	xfer_mem2mem (uint32_t number_of_transfer, dma_channel_transfer_size_t transfer_size, volatile void destination_address, volatile void source_address, bool start)
	the function member used to move data from memory to memory

void	cleanup_and_free_dma_channel ()
	clean up and free the allocated DMA channel

void	start_dma ()
	start the DMA transfer

Public Attributes
irq_num_t	irq_number
	the IRQ number for the DMA channel, can be DMA_IRQ_0 or DMA_IRQ_1

uint	channel
	the DMA channel number allocated

SemaphoreHandle_t	end_of_xfer
	semaphore to signal the end of a DMA transfer

Detailed Description

Class to manage a DMA channel.

Constructor & Destructor Documentation

HW_DMA::HW_DMA	(	irq_num_t	irq_number = DMA_IRQ_0,
		irq_handler_t	dma_irq_handler = NULL )

constructor of the DMA class

Parameters

irq_number	the IRQ attached to this DMA object
dma_irq_handler	the IRQ hansler triggered by this IRQ

the function member used to move data from memory to memory

Parameters

number_of_transfer	the number of DMA transfers
transfer_size	the size of DMA transfer (8, 16 or 32 bit)
destination_address	the memory destination address
source_address	the memory source address
start	if trus, immediate start

The documentation for this class was generated from the following files:
