This is the Model abstract class of Model_View_Control design pattern. More...

#include <ui_core.h>

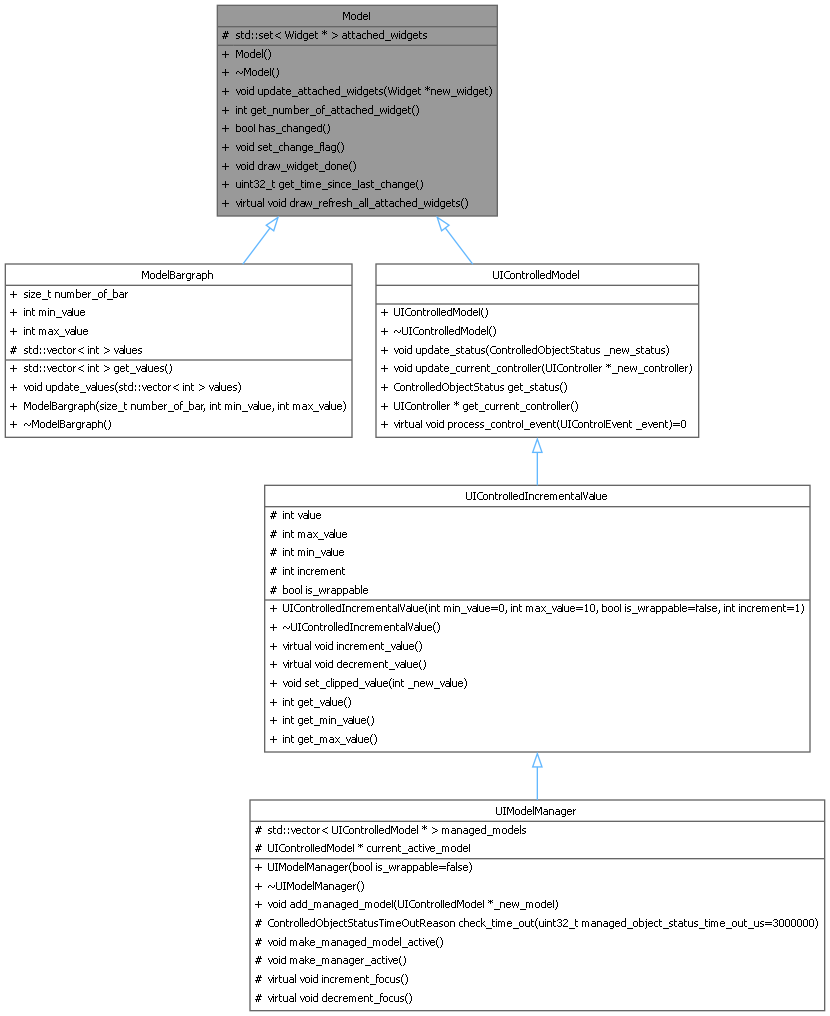

Inheritance diagram for Model:

Collaboration diagram for Model:

Public Member Functions
	Model ()
	Construct the Model object.

	~Model ()
	Destroy the Model object.

void	update_attached_widgets (Widget *new_widget)
	add a new widget to the set of attached_widgets

int	get_number_of_attached_widget ()
	get the number of attached widgets

bool	has_changed ()
	get the change flag status

void	set_change_flag ()
	Set the change flag object to true.

void	draw_widget_done ()
	Set the change flag object to false.

uint32_t	get_time_since_last_change ()
	compute time since the last status change

virtual void	draw_refresh_all_attached_widgets ()
	update drawing for each attached widgets

Protected Attributes
std::set< Widget * >	attached_widgets
	the set of widgets that are in charge of viewing this model.

Private Attributes
uint32_t	last_change_time
	the time in microseconds since the last status has changed

int	change_flag
	The semaphore used to trigger the actual drawing of the widget on the screen. It is set with the number of widget attached to this model. Doing so, each time an attached widget is refreshed, the the change_flag is decrement by 1. When all attached widget are done, the change_flag = 0 (i.e. false).

Detailed Description

This is the Model abstract class of Model_View_Control design pattern.

It handles change_flag, a semaphore used to indicate that a redraw is required for all attached widgets.

The controller or any other entities that modify the model must set the change_flag and the widget in charge of its screen representation must clear the change_flag

Member Function Documentation

◆ get_number_of_attached_widget()

int Model::get_number_of_attached_widget ( )

get the number of attached widgets

Returns

◆ get_time_since_last_change()

uint32_t Model::get_time_since_last_change ( )

compute time since the last status change

Returns: this time in microsecond

Here is the caller graph for this function:

◆ has_changed()

bool Model::has_changed ( )

get the change flag status

Returns: true means the redraw is required

◆ update_attached_widgets()

void Model::update_attached_widgets ( Widget * new_widget )

add a new widget to the set of attached_widgets

Parameters

new_widget

Here is the caller graph for this function:

Member Data Documentation

◆ attached_widgets

std::set<Widget *> Model::attached_widgets

protected

the set of widgets that are in charge of viewing this model.

Note: USAGE: Used to count the number of widget that need to be refreshed

The documentation for this class was generated from the following files:

ui_core.h
ui_core.cpp
