class for the ultrasonic ranging module HC-SR04 compliant with FreeRTOS More...

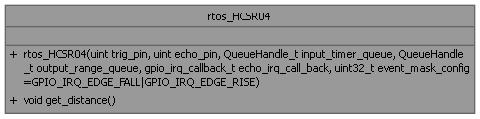

Collaboration diagram for rtos_HCSR04:

Public Member Functions
	rtos_HCSR04 (uint trig_pin, uint echo_pin, QueueHandle_t input_timer_queue, QueueHandle_t output_range_queue, gpio_irq_callback_t echo_irq_call_back, uint32_t event_mask_config=GPIO_IRQ_EDGE_FALL\|GPIO_IRQ_EDGE_RISE)
	Construct a new rtos_HCSR04 object.

void	get_distance ()
	request a measure from HCSR04

Private Attributes
uint	trig_pin
	the GPIO pin that send trigger signal to the HC-SR04 module

uint	echo_pin
	the GPIO pin where the HC-SR04 return echo signal

uint32_t	echo_irq_mask_config
	A memory slot reserved to store the irq_event_mask.

QueueHandle_t	input_timer_queue
	the queue from which echo time measurement are received

QueueHandle_t	output_range_queue
	the queue to which the resulting range is sent

bool	measure_completed
	Flag indicating if the measurement is completed.

Detailed Description

class for the ultrasonic ranging module HC-SR04 compliant with FreeRTOS

Constructor & Destructor Documentation

rtos_HCSR04::rtos_HCSR04	(	uint	trig_pin,
		uint	echo_pin,
		QueueHandle_t	input_timer_queue,
		QueueHandle_t	output_range_queue,
		gpio_irq_callback_t	echo_irq_call_back,
		uint32_t	event_mask_config = GPIO_IRQ_EDGE_FALL \| GPIO_IRQ_EDGE_RISE )

Construct a new rtos_HCSR04 object.

Parameters

trig_pin	the pin attached to the triggering signal
echo_pin	the pin used to measure round-trip time of ultrasonic pulses
input_timer_queue	the input queue that receives data from IRQ
output_range_queue	the output queue that receives computed range
echo_irq_call_back	The ISR (interrupt Service Routine) that process IRQ event
event_mask_config	the rising/falling edge configuratio of the irq
