rtosHC_SR04 Class Reference

class for the ultrasonic ranging module HC-SR04 compliant with FreeRTOS More...

#include <rtos_hc_sr04.h>

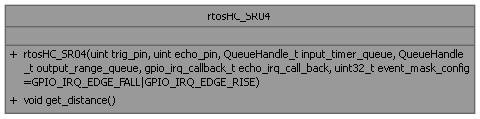

Collaboration diagram for rtosHC_SR04:

Public Member Functions
	rtosHC_SR04 (uint trig_pin, uint echo_pin, QueueHandle_t input_timer_queue, QueueHandle_t output_range_queue, gpio_irq_callback_t echo_irq_call_back, uint32_t event_mask_config=GPIO_IRQ_EDGE_FALL|GPIO_IRQ_EDGE_RISE)
	Construct a new rtosHC_SR04 object.
void	get_distance ()
	request a measure from HC_SR04

Detailed Description

class for the ultrasonic ranging module HC-SR04 compliant with FreeRTOS

Constructor & Destructor Documentation

rtosHC_SR04()

rtosHC_SR04::rtosHC_SR04	(	uint	trig_pin,
		uint	echo_pin,
		QueueHandle_t	input_timer_queue,
		QueueHandle_t	output_range_queue,
		gpio_irq_callback_t	echo_irq_call_back,
		uint32_t	event_mask_config = GPIO_IRQ_EDGE_FALL | GPIO_IRQ_EDGE_RISE )

Construct a new rtosHC_SR04 object.

Parameters

trig_pin	the pin attached to the triggering signal
echo_pin	the pin used to measure round-trip time of ultrasonic pulses
input_timer_queue	the input queue that receives data from IRQ
output_range_queue	the output queue that receives computed range
echo_irq_call_back	The ISR (interrupt Service Routine) that process IRQ event
event_mask_config	the rising/falling edge configuratio of the irq

---

The documentation for this class was generated from the following files:

• rtos_hc_sr04.h
• rtos_hc_sr04.cpp
