UIWidget Class Reference

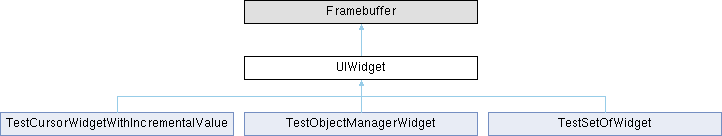

Inheritance diagram for UIWidget:

Public Member Functions
	UIWidget (UIDisplayDevice *_display_screen, size_t _frame_width, size_t _frame_height, uint8_t _widget_anchor_x, uint8_t _widget_anchor_y, bool _widget_with_border, uint8_t _widget_border_width=1, FramebufferFormat _framebuffer_format=FramebufferFormat::MONO_VLSB, StructFramebufferText _framebuffer_txt_cnf={.font=font_8x8})
	Construct a new UIWidget object.
	~UIWidget ()
	Destroy the UIWidget object.
void	add_widget (UIWidget *_sub_widget)
virtual void	refresh ()
	WARNING : this function can be redefined. When several widget display one Model, only le last one must clear_change_flag()

Static Public Member Functions
static FramebufferColor	blinking_us (uint32_t _blink_period)

Protected Member Functions
virtual void	set_displayed_model (UIModelObject *_new_displayed_model)
	Set the displayed model object.
void	set_display_screen (UIDisplayDevice *_new_display_device)
	Set the display screen object.
void	draw_border ()
virtual void	draw ()=0

Protected Attributes
std::vector< UIWidget * >	widgets
size_t	widget_width {128}
size_t	widget_height {8}
uint8_t	widget_start_x
uint8_t	widget_start_y
uint8_t	widget_border_width

Detailed Description

Definition at line 363 of file ui_core.h.

Constructor & Destructor Documentation

UIWidget()

UIWidget::UIWidget	(	UIDisplayDevice *	_display_screen,
		size_t	_frame_width,
		size_t	_frame_height,
		uint8_t	_widget_anchor_x,
		uint8_t	_widget_anchor_y,
		bool	_widget_with_border,
		uint8_t	_widget_border_width = 1,
		FramebufferFormat	_framebuffer_format = FramebufferFormat::MONO_VLSB,
		StructFramebufferText	_framebuffer_txt_cnf = {.font = font_8x8} )

Construct a new UIWidget object.

Parameters

_display_screen
_frame_width
_frame_height
_widget_anchor_x
_widget_anchor_y
_widget_with_border
_widget_border_width
_framebuffer_format
_framebuffer_txt_cnf

Definition at line 200 of file ui_core.cpp.

~UIWidget()

UIWidget::~UIWidget

(

)

Destroy the UIWidget object.

Definition at line 216 of file ui_core.cpp.

Member Function Documentation

add_widget()

void UIWidget::add_widget

(

UIWidget *

_sub_widget

)

Parameters

_sub_widget

Definition at line 230 of file ui_core.cpp.

blinking_us()

FramebufferColor UIWidget::blinking_us ( uint32_t _blink_period )

static

Parameters

_blink_period

Returns

FramebufferColor

Definition at line 195 of file ui_core.cpp.

draw_border()

void UIWidget::draw_border ( )

protected

Definition at line 190 of file ui_core.cpp.

refresh()

void UIWidget::refresh ( )

virtual

WARNING : this function can be redefined. When several widget display one Model, only le last one must clear_change_flag()

First: Scan all contained sub-widgets if any and call refresh() member function of each of them.

Then: apply refresh() on the containing widget if any changes require a screen redraw and finally : clear model change flag

Reimplemented in TestCursorWidgetWithIncrementalValue, and TestObjectManagerWidget.

Definition at line 235 of file ui_core.cpp.

set_display_screen()

void UIWidget::set_display_screen ( UIDisplayDevice * _new_display_device )

protected

Set the display screen object.

Parameters

_new_display_device

Definition at line 225 of file ui_core.cpp.

set_displayed_model()

void UIWidget::set_displayed_model ( UIModelObject * _new_displayed_model )

protectedvirtual

Set the displayed model object.

Parameters

_new_displayed_model

Definition at line 220 of file ui_core.cpp.

Member Data Documentation

widget_border_width

uint8_t UIWidget::widget_border_width

protected

Definition at line 426 of file ui_core.h.

widget_height

size_t UIWidget::widget_height {8}

protected

Definition at line 411 of file ui_core.h.

widget_start_x

uint8_t UIWidget::widget_start_x

protected

Definition at line 416 of file ui_core.h.

widget_start_y

uint8_t UIWidget::widget_start_y

protected

Definition at line 421 of file ui_core.h.

widget_width

size_t UIWidget::widget_width {128}

protected

Definition at line 406 of file ui_core.h.

widgets

std::vector<UIWidget *> UIWidget::widgets

protected

Definition at line 401 of file ui_core.h.

---

The documentation for this class was generated from the following files:

• C:/Users/chris/OneDrive/MyRP2_CPP_UI/ui_core/ui_core.h
• C:/Users/chris/OneDrive/MyRP2_CPP_UI/ui_core/ui_core.cpp
