Canvas Class Reference

The canvas is a virtual memory in which the widget draws. More...

#include <canvas.h>

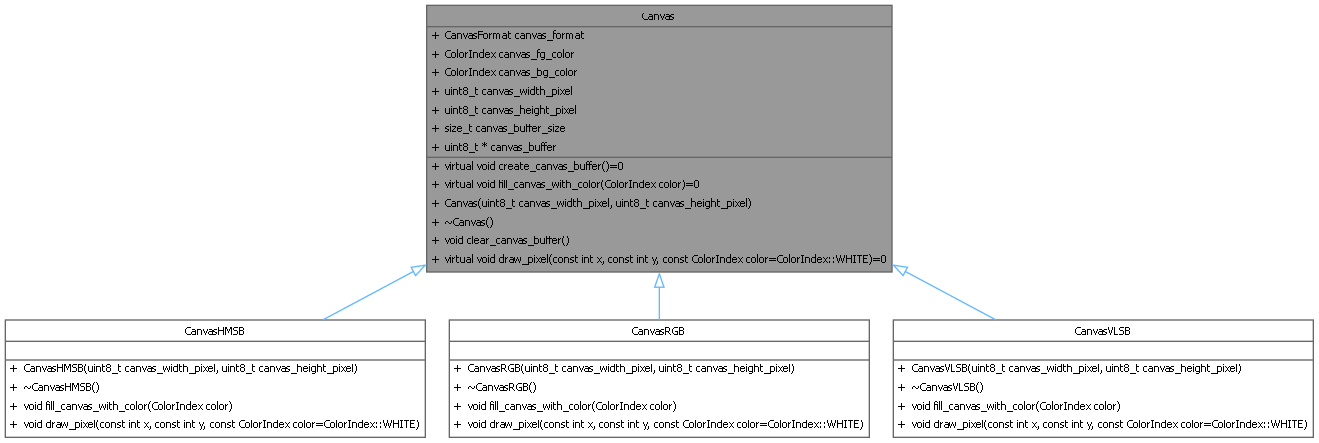

Inheritance diagram for Canvas:

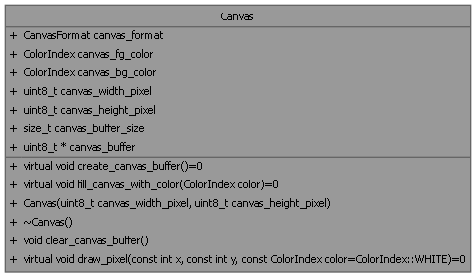

Collaboration diagram for Canvas:

Public Member Functions
virtual void	create_canvas_buffer ()=0
	Create a canvas buffer object.
virtual void	fill_canvas_with_color (ColorIndex color)=0
	fill the canvas with a given color
	Canvas (uint8_t canvas_width_pixel, uint8_t canvas_height_pixel)
	Construct a new Canvas object.
virtual void	clear_canvas_buffer ()
	fill the canvas buffer with 0x00
virtual void	draw_pixel (const int x, const int y, const ColorIndex color=ColorIndex::WHITE)=0
	the graphic primitive to draw a pixel

Public Attributes
CanvasFormat	canvas_format
	the actual format of the canvas
ColorIndex	fg_color
	a copy of the widget foreground color
ColorIndex	bg_color
	a copy of the widget background color
uint8_t	canvas_width_pixel
	the width (in pixel) of the canvas and also of those of the associated widget
uint8_t	canvas_height_pixel
	the height (in pixel) of the canvas and also of those of the associated widget
size_t	canvas_buffer_size_byte
	the size (in bytes) of the buffer
size_t	canvas_buffer_size_pixel
	the size (in pixel) of the buffer
uint8_t *	canvas_buffer {nullptr}
	the 8bit canvas buffer
uint16_t *	canvas_16buffer {nullptr}
	the 16bit canvasbuffer

Detailed Description

The canvas is a virtual memory in which the widget draws.

Constructor & Destructor Documentation

Canvas()

Canvas::Canvas	(	uint8_t	canvas_width_pixel,
		uint8_t	canvas_height_pixel )

Construct a new Canvas object.

Parameters

canvas_width_pixel	Width of the canvas (in pixel)
canvas_height_pixel	height of the canvas(in pixel)

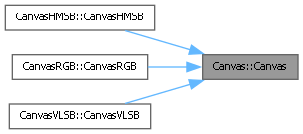

Here is the caller graph for this function:

Member Function Documentation

clear_canvas_buffer()

void Canvas::clear_canvas_buffer ( )

virtual

fill the canvas buffer with 0x00

Reimplemented in CanvasTrueRGB.

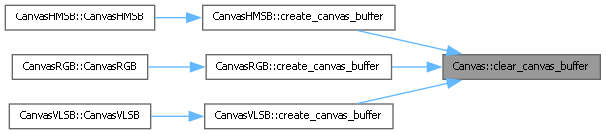

Here is the caller graph for this function:

create_canvas_buffer()

virtual void Canvas::create_canvas_buffer ( )

pure virtual

Create a canvas buffer object.

Implemented in CanvasHMSB, CanvasRGB, CanvasTrueRGB, and CanvasVLSB.

draw_pixel()

virtual void Canvas::draw_pixel ( const int x, const int y, const ColorIndex color = ColorIndex::WHITE )

pure virtual

the graphic primitive to draw a pixel

Parameters

x	the x position of the pixel
y	the y position of the pixel
color	the color of the pixel

Implemented in CanvasHMSB, CanvasRGB, CanvasTrueRGB, and CanvasVLSB.

fill_canvas_with_color()

virtual void Canvas::fill_canvas_with_color ( ColorIndex color )

pure virtual

fill the canvas with a given color

Parameters

color

Implemented in CanvasHMSB, CanvasRGB, CanvasTrueRGB, and CanvasVLSB.

---

The documentation for this class was generated from the following files:

• canvas.h
• canvas.cpp
