#include "pico/stdlib.h"
#include <stdio.h>
#include <map>

Include dependency graph for canvas.h:

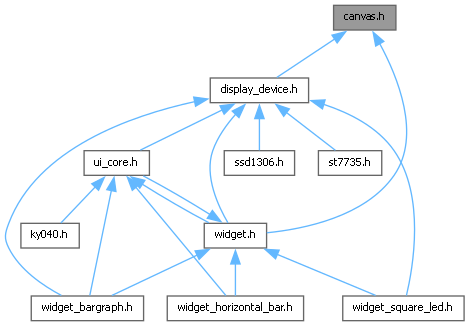

This graph shows which files directly or indirectly include this file:

Classes
struct	struct_ConfigGraphicWidget
	data structure used to configure graphic framebuffer More...

struct	struct_ConfigTextWidget
	the data structure used to configure textual widget More...

class	Canvas
	The canvas is a virtual memory in which the widget draws. More...

class	CanvasVLSB
	A special version of canvas for monochrome widget (and device) with 8pixel/byte arranged vertically. More...

class	CanvasRGB
	A special version of canvas for color widget (and device) with 1 pixel/byte according to 565 RGB color coding. More...

class	CanvasTrueRGB
	A special version of canvas for color widget (and device) with true RGB_COLOR_INDEX_8b color coding(i.e. 16bit) per pixel. More...

class	CanvasHMSB
	A special version of canvas for monochrome widget with 8pixel/byte arranged horizontally. Usefull for monochrome widget (e.g.text) even for color RGB_COLOR_INDEX_8b display device. More...

Macros
#define	FONT_WIDTH_INDEX 0
	index of the font width value in the <...>_font.h file

#define	FONT_HEIGHT_INDEX 1
	index of the font height value in the <...>_font.h file

#define	BYTE_SIZE 8
	the symbolic value of a byte

Enumerations
enum class	ColorIndex
	define the code value for color

enum class	CanvasFormat { MONO_VLSB , MONO_HLSB , MONO_HMSB , RGB_COLOR_INDEX_8b , RGB565_16b }
	the format of the canvas More...

Variables
std::map< ColorIndex, uint16_t >	color565_palette
	the map color for RGB_COLOR_INDEX_8b canvas

Detailed Description

Enumeration Type Documentation

strong

the format of the canvas

Enumerator
MONO_VLSB	monochrome canvas, pixel arranged vertically, LSB is top pixel. Note example: SSD1306
MONO_HLSB	monochrome canvas, pixel arranged horizontally, LSB is left pixel Note example: SH1106
MONO_HMSB	monochrome canvas, pixel arranged horizontally, MSB is left pixel Note example: ST7735 in 1-bit mode
RGB_COLOR_INDEX_8b	color canvas, 8-bit/pixel coded according to ColorIndex in color565_palette. Converted to RGB565 just before being sent to display device. Note example: ST7735 in 16-bit mode
RGB565_16b	color canvas, 16bits/pixel arranged 5b-red,6b-green,5b-blue stored in buffer. This is to allow the use of 16bit DMA. Note example: ST7735 in 16-bit mode with transfer from canvas done by DMA. In this case the canvas buffer format Canvas::RGB565_16b is directly compatible with the ST7735 16-bit mode.
