SSD1306 128x64 pixel OLED display device driver with I2C interface. More...

#include <ssd1306.h>

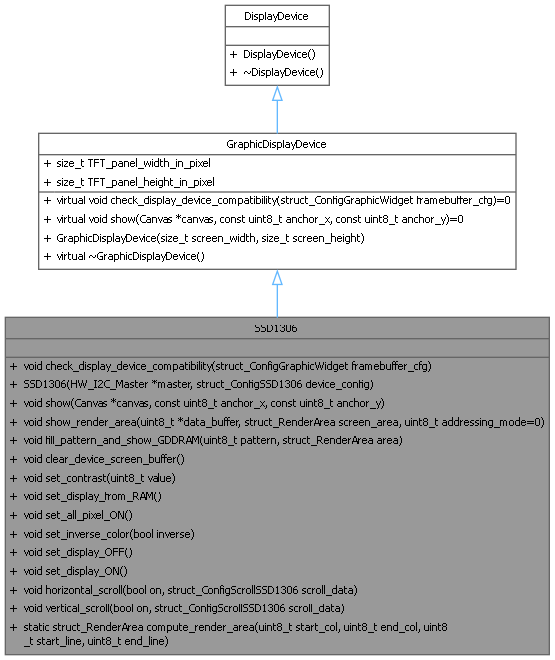

Inheritance diagram for SSD1306:

Collaboration diagram for SSD1306:

Public Member Functions
void	check_display_device_compatibility (struct_ConfigGraphicWidget framebuffer_cfg, CanvasFormat canvas_format)
	A pure virtual member function. Each device must implement this method and check the compatibility of the widget parameter with the its physical limitations.

	SSD1306 (HW_I2C_Master *master, struct_ConfigSSD1306 device_config)

void	show (Canvas *canvas, const uint8_t anchor_x, const uint8_t anchor_y)

virtual void	show_render_area (uint8_t *data_buffer, struct_RenderArea screen_area, uint8_t addressing_mode=0)
	when we need to show a render area with a given framebuffer

virtual void	fill_pattern_and_show_GDDRAM (uint8_t pattern, struct_RenderArea area)
	fill a pattern in the device framebuffer. this make it visible as soon as the device transfer the framebuffer to the pixels. The pattern is a vertical byte representing 8 vertical pixels (refer to MONO_VLSB framebuffer format)

void	clear_device_screen_buffer ()
	write 0x00 directly into the device framebuffer. Uses fill_pattern_and_show_GDDRAM command.

void	set_contrast (uint8_t value)
	Set the contrast object. refer to datasheet of SSD1306 device.

void	set_display_from_RAM ()
	Set the display from RAM object.

void	set_all_pixel_ON ()
	Set the all pixel ON.

void	set_inverse_color (bool inverse)
	Set the inverse color object.

void	set_display_OFF ()
	Set the display OFF object.

void	set_display_ON ()
	Set the display ON object.

void	horizontal_scroll (bool on, struct_ConfigScrollSSD1306 scroll_data)

void	vertical_scroll (bool on, struct_ConfigScrollSSD1306 scroll_data)

Public Member Functions inherited from GraphicDisplayDevice
	GraphicDisplayDevice (size_t screen_width, size_t screen_height)
	Construct a new Display Device object.

virtual	~GraphicDisplayDevice ()
	Destroy the Display Device object.

Static Public Member Functions
static struct_RenderArea	compute_render_area (uint8_t start_col, uint8_t end_col, uint8_t start_line, uint8_t end_line)
	A static member function that converts the area we want to display into device specific parameters.

Protected Member Functions
void	init ()
	the master init function that calls all others

void	init_MUX_ratio (uint8_t value)
	refer to SSD1306 data sheet for more details

void	init_display_vertical_shift (uint8_t value)
	refer to SSD1306 data sheet for more details

void	init_RAM_start_line (uint8_t value)
	refer to SSD1306 data sheet for more details

void	init_SEG_scan_inverse_direction (bool inverse)
	refer to SSD1306 data sheet for more details

void	init_COM_scan_inverse_direction (bool inverse)
	refer to SSD1306 data sheet for more details

void	init_COM_cfg (bool sequentialCOM, bool enableCOMLRremap)
	refer to SSD1306 data sheet for more details

void	init_clock_frequency (uint8_t divide_ratio, uint8_t frequency_factor)
	refer to SSD1306 data sheet for more details

void	init_charge_pump_enabled (bool enabled)
	refer to SSD1306 data sheet for more details

void	send_cmd (uint8_t cmd)
	refer to SSD1306 data sheet for more details

void	send_cmd_list (uint8_t *cmd_list, int num)
	refer to SSD1306 data sheet for more details

Protected Attributes
HW_I2C_Master *	i2c_master
	the I2C master that control the SSD1306 display

struct_ConfigSSD1306	device_config
	the SSD1306 device configuration

Additional Inherited Members
Public Attributes inherited from GraphicDisplayDevice
size_t	TFT_panel_width_in_pixel
	the physical width of the screen (in pixel)

size_t	TFT_panel_height_in_pixel
	the physical height of the screen (in pixel)

Detailed Description

SSD1306 128x64 pixel OLED display device driver with I2C interface.

Constructor & Destructor Documentation

◆ SSD1306()

SSD1306::SSD1306	(	HW_I2C_Master *	master,
		struct_ConfigSSD1306	device_config )

Parameters

master	the I2C master interface driver HW_I2C_Master
device_config	the configuration according to struct_ConfigSSD1306

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

◆ check_display_device_compatibility()

void SSD1306::check_display_device_compatibility	(	struct_ConfigGraphicWidget	framebuffer_cfg,
		CanvasFormat	canvas_format )

virtual

A pure virtual member function. Each device must implement this method and check the compatibility of the widget parameter with the its physical limitations.

Parameters

framebuffer_cfg	the widget configuration data
canvas_format	the format of the canvas

Implements GraphicDisplayDevice.

◆ compute_render_area()

struct_RenderArea SSD1306::compute_render_area	(	uint8_t	start_col,
		uint8_t	end_col,
		uint8_t	start_line,
		uint8_t	end_line )

static

A static member function that converts the area we want to display into device specific parameters.

Parameters

start_col
end_col
start_line
end_line

Returns: struct_RenderArea

Here is the caller graph for this function:

◆ fill_pattern_and_show_GDDRAM()

void SSD1306::fill_pattern_and_show_GDDRAM	(	uint8_t	pattern,
		struct_RenderArea	area )

virtual

fill a pattern in the device framebuffer. this make it visible as soon as the device transfer the framebuffer to the pixels. The pattern is a vertical byte representing 8 vertical pixels (refer to MONO_VLSB framebuffer format)

Bug: // FIXME : PAGE_ADDRESSING_MODE seems misbehave depending on what was executed before

Parameters

pattern	the vertical pattern to copy in a set of 8 vertical pixel
area	the location of the area to copy the pattern

Here is the call graph for this function:

Here is the caller graph for this function:

◆ horizontal_scroll()

void SSD1306::horizontal_scroll	(	bool	on,
		struct_ConfigScrollSSD1306	scroll_data )

Parameters

on
scroll_data

Here is the call graph for this function:

◆ init_charge_pump_enabled()

void SSD1306::init_charge_pump_enabled ( bool enabled )

protected

refer to SSD1306 data sheet for more details

Parameters

enabled refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_clock_frequency()

void SSD1306::init_clock_frequency	(	uint8_t	divide_ratio,
		uint8_t	frequency_factor )

protected

refer to SSD1306 data sheet for more details

Parameters

divide_ratio	refer to SSD1306 data sheet for more details
frequency_factor	refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_COM_cfg()

void SSD1306::init_COM_cfg	(	bool	sequentialCOM,
		bool	enableCOMLRremap )

protected

refer to SSD1306 data sheet for more details

Parameters

sequentialCOM	refer to SSD1306 data sheet for more details
enableCOMLRremap	refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_COM_scan_inverse_direction()

void SSD1306::init_COM_scan_inverse_direction ( bool inverse )

protected

refer to SSD1306 data sheet for more details

Parameters

inverse refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_display_vertical_shift()

void SSD1306::init_display_vertical_shift ( uint8_t value )

protected

refer to SSD1306 data sheet for more details

Parameters

value refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_MUX_ratio()

void SSD1306::init_MUX_ratio ( uint8_t value )

protected

refer to SSD1306 data sheet for more details

Parameters

value refer to SSD1306 data shhet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_RAM_start_line()

void SSD1306::init_RAM_start_line ( uint8_t value )

protected

refer to SSD1306 data sheet for more details

Parameters

value refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_SEG_scan_inverse_direction()

void SSD1306::init_SEG_scan_inverse_direction ( bool inverse )

protected

refer to SSD1306 data sheet for more details

Parameters

inverse refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_cmd()

void SSD1306::send_cmd ( uint8_t cmd )

protected

refer to SSD1306 data sheet for more details

Parameters

cmd	refer to SSD1306 data sheet for more details

Here is the caller graph for this function:

◆ send_cmd_list()

void SSD1306::send_cmd_list	(	uint8_t *	cmd_list,
		int	num )

protected

refer to SSD1306 data sheet for more details

Parameters

cmd_list	refer to SSD1306 data sheet for more details
num	refer to SSD1306 data sheet for more details

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_contrast()

void SSD1306::set_contrast ( uint8_t value )

Set the contrast object. refer to datasheet of SSD1306 device.

Parameters

value

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_inverse_color()

void SSD1306::set_inverse_color ( bool inverse )

Set the inverse color object.

Parameters

inverse

Here is the call graph for this function:

Here is the caller graph for this function:

◆ show()

void SSD1306::show	(	Canvas *	canvas,
		const uint8_t	anchor_x,
		const uint8_t	anchor_y )

virtual

Parameters

canvas	a pointer to the Canvas that contains the buffer to be displayed
anchor_x	where we want to position (x) the frambuffer
anchor_y	where we want to position (y) the frambuffer

Implements GraphicDisplayDevice.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ show_render_area()

void SSD1306::show_render_area	(	uint8_t *	data_buffer,
		struct_RenderArea	screen_area,
		uint8_t	addressing_mode = 0 )

virtual

when we need to show a render area with a given framebuffer

Parameters

data_buffer
screen_area
addressing_mode

Reimplemented in rtos_SSD1306.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vertical_scroll()

void SSD1306::vertical_scroll	(	bool	on,
		struct_ConfigScrollSSD1306	scroll_data )

Parameters

on
scroll_data

Here is the call graph for this function:

The documentation for this class was generated from the following files:

ssd1306.h
ssd1306.cpp
