HW_I2C_Master Class Reference

this is a C++ wrapper for the original pico SDK i2c master API More...

#include <hw_i2c.h>

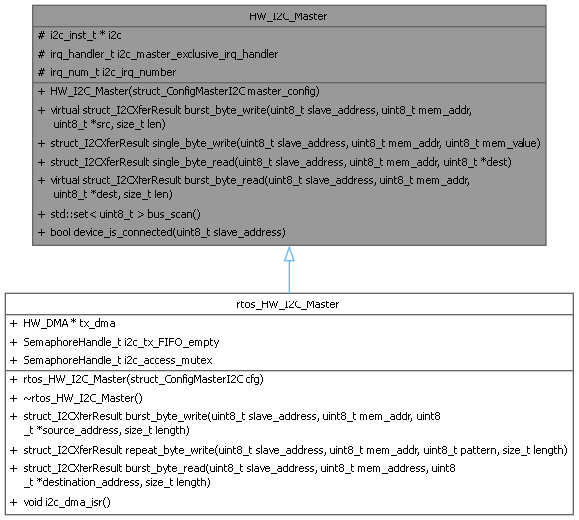

Inheritance diagram for HW_I2C_Master:

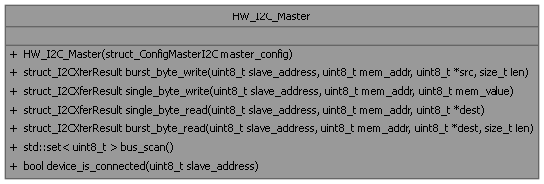

Collaboration diagram for HW_I2C_Master:

Public Member Functions
	HW_I2C_Master (struct_ConfigMasterI2C master_config)
	Construct a new hw i2c master object.
virtual struct_I2CXferResult	burst_byte_write (uint8_t slave_address, uint8_t mem_addr, uint8_t *src, size_t len)
	a convenient C++ member wrapper to write a block of data starting at a slave memory address. The operation is bounded by a timeout
struct_I2CXferResult	single_byte_write (uint8_t slave_address, uint8_t mem_addr, uint8_t mem_value)
	a convenient C++ member wrapper to write a single byte at a slave memory address. The operation is bounded by a timeout.
struct_I2CXferResult	single_byte_read (uint8_t slave_address, uint8_t mem_addr, uint8_t *dest)
	a convenient C++ member wrapper to read a single byte at a slave memory address. The operation is bounded by a timeout.
virtual struct_I2CXferResult	burst_byte_read (uint8_t slave_address, uint8_t mem_addr, uint8_t *dest, size_t len)
	a convenient C++ member wrapper to read a block of data starting at a slave memory address. The operation is bounded by a timeout.
std::set< uint8_t >	bus_scan ()
	A utility that scan the I2C bus and return the set of answering devices.
bool	device_is_connected (uint8_t slave_address)
	utility to know if a device is connected

Protected Attributes
i2c_inst_t *	i2c
	the i2c hardware instance of the Pico that handles the i2c master
irq_handler_t	i2c_master_exclusive_irq_handler = NULL
	a function pointer to the IRQ i2c_master_exclusive_handler, to the program that manage the I2C IRQ when used with DMA
irq_num_t	i2c_irq_number
	the attached irq to the i2c instance

Detailed Description

this is a C++ wrapper for the original pico SDK i2c master API

Constructor & Destructor Documentation

HW_I2C_Master()

HW_I2C_Master::HW_I2C_Master

(

struct_ConfigMasterI2C

master_config

)

Construct a new hw i2c master object.

Parameters

master_config

Here is the caller graph for this function:

Member Function Documentation

burst_byte_read()

struct_I2CXferResult HW_I2C_Master::burst_byte_read ( uint8_t slave_address, uint8_t mem_addr, uint8_t * dest, size_t len )

virtual

a convenient C++ member wrapper to read a block of data starting at a slave memory address. The operation is bounded by a timeout.

Parameters

slave_address	the slave address
mem_addr	the starting address of slave memory to read from
dest	Pointer to buffer to receive data
len	the size of the block of data

Returns

struct_I2CXferResult

Reimplemented in rtos_HW_I2C_Master.

burst_byte_write()

struct_I2CXferResult HW_I2C_Master::burst_byte_write ( uint8_t slave_address, uint8_t mem_addr, uint8_t * src, size_t len )

virtual

a convenient C++ member wrapper to write a block of data starting at a slave memory address. The operation is bounded by a timeout

Parameters

slave_address	the slave address
mem_addr	the slave memory
src	the address of the block of data
len	the size of the block of data

Returns

struct_I2CXferResult

Reimplemented in rtos_HW_I2C_Master.

bus_scan()

std::set< uint8_t > HW_I2C_Master::bus_scan

(

)

A utility that scan the I2C bus and return the set of answering devices.

Returns

std::set<uint8_t> the set of responding addresses

Here is the call graph for this function:

device_is_connected()

bool HW_I2C_Master::device_is_connected

(

uint8_t

slave_address

)

utility to know if a device is connected

Parameters

slave_address

Returns

true the device responds ACK to a write

false no response

Here is the caller graph for this function:

single_byte_read()

struct_I2CXferResult HW_I2C_Master::single_byte_read	(	uint8_t	slave_address,
		uint8_t	mem_addr,
		uint8_t *	dest )

a convenient C++ member wrapper to read a single byte at a slave memory address. The operation is bounded by a timeout.

Parameters

slave_address	the slave address
mem_addr	the address of slave memory to read from
dest	Pointer to buffer to receive data

Returns

struct_I2CXferResult

single_byte_write()

struct_I2CXferResult HW_I2C_Master::single_byte_write	(	uint8_t	slave_address,
		uint8_t	mem_addr,
		uint8_t	mem_value )

a convenient C++ member wrapper to write a single byte at a slave memory address. The operation is bounded by a timeout.

Parameters

slave_address	the slave address
mem_addr	the slave memory
mem_value	the byte to write

Returns

struct_I2CXferResult

---

The documentation for this class was generated from the following files:

• hw_i2c.h
• hw_i2c.cpp
