ST7735 driven TFT color display device. More...

#include <st7735.h>

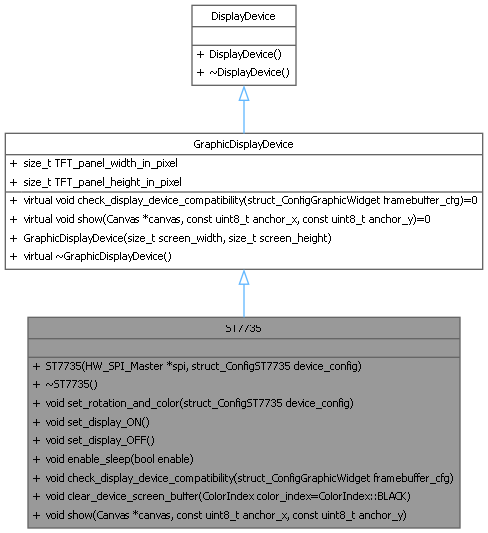

Inheritance diagram for ST7735:

Collaboration diagram for ST7735:

Public Member Functions
	ST7735 (HW_SPI_Master *spi, struct_ConfigST7735 device_config)
	Construct a new ST7735 object.

void	set_rotation_and_color (struct_ConfigST7735 device_config)
	set the actual position of the display

void	set_display_ON ()
	Set the display ON object.

void	set_display_OFF ()
	Set the display OFF object.

void	enable_sleep (bool enable)
	turn the display in sleep mode on/off

void	check_display_device_compatibility (struct_ConfigGraphicWidget framebuffer_cfg, CanvasFormat canvas_format)
	A pure virtual member function. Each device must implement this method and check the compatibility of the widget parameter with the its physical limitations.

virtual void	clear_device_screen_buffer (ColorIndex color_index=ColorIndex::BLACK)
	fill the internal ST7735 screen buffer with the given color. Default to BLACK, clear the internal buffer

virtual void	show (Canvas *canvas, const uint8_t anchor_x, const uint8_t anchor_y)
	A pure virtual member function. It transfers the pixel buffer to the a part of display screen buffer starting at the (anchor_x, anchor_y) coordinates of the screen , expressed in pixel. This method takes into account the specific addressing scheme and memory structure of the actual display device.

Public Member Functions inherited from GraphicDisplayDevice
	GraphicDisplayDevice (size_t screen_width, size_t screen_height)
	Construct a new Display Device object.

virtual	~GraphicDisplayDevice ()
	Destroy the Display Device object.

Protected Member Functions
void	enable_command_pin (bool enable)
	enable or disable the command mode (DC pin low or high)

void	hardware_reset ()
	hardware reset of the ST7735 device

void	init_pins ()
	initialize pins for the ST7735 device

void	device_wakeup ()
	wake up the device from sleep mode

void	config_frame_rate_control ()
	config framerate control

void	config_inversion_control ()
	config display inversion control

void	config_power_control ()
	config power control

void	config_gamma ()
	column row address set CASET , [0x00,0x01,0x00, width-1] RASET , [0x00,0x01,0x00, height-1] we start column 1

void	set_normal_mode ()
	_set display normal ON NORON , sleep 10ms

void	config_device_specific_size_and_offsets (struct_ConfigST7735 device_config)
	config specific device size and offsets

void	send_cmd (uint8_t cmd)
	send a command to the ST7735 device

void	send_cmd_list (uint8_t *cmd, size_t len)
	send a list of command to the ST7735 device

void	send_buffer (uint8_t *buffer, size_t buffer_len)
	send a buffer of data to the ST7735 device

void	set_backlight (bool on)
	set the backlight of the display

void	soft_reset ()
	perform a software reset of the display

void	set_RAM_write_addresses (uint8_t start_x, uint8_t start_y, size_t width, size_t height)
	set the RAM write addresses for the display

Protected Attributes
HW_SPI_Master *	spi
	SPI driver associated with the display.

uint	dc_pin
	the GPIO connected to the Data/Command_ input

uint	backlight_pin
	the GPIO connected to the backlight input

uint	hw_reset_pin
	the GPIO connected to the hardware reset input

uint8_t	ST7735_device_column_offset {0}
	the column offset for the ST7735 device

uint8_t	ST7735_device_row_offset {0}
	the row offset for the ST7735 device

uint8_t	TFT_panel_start_x {0}
	the x starting position of the TFT panel within the ST7735 memory

uint8_t	TFT_panel_start_y {0}
	the y starting position of the TFT panel within the ST7735 memory

bool	rgb_order
	a flag that indicates if the color order is RGB (true) or BGR (false)

Additional Inherited Members
Public Attributes inherited from GraphicDisplayDevice
size_t	TFT_panel_width_in_pixel
	the physical width of the screen (in pixel)

size_t	TFT_panel_height_in_pixel
	the physical height of the screen (in pixel)

Detailed Description

ST7735 driven TFT color display device.

Constructor & Destructor Documentation

◆ ST7735()

ST7735::ST7735	(	HW_SPI_Master *	spi,
		struct_ConfigST7735	device_config )

Construct a new ST7735 object.

Parameters

spi	the SPI associated driver
device_config	the device configuration file

Here is the call graph for this function:

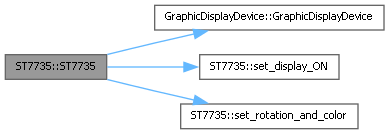

Here is the caller graph for this function:

Member Function Documentation

◆ check_display_device_compatibility()

void ST7735::check_display_device_compatibility	(	struct_ConfigGraphicWidget	framebuffer_cfg,
		CanvasFormat	canvas_format )

virtual

A pure virtual member function. Each device must implement this method and check the compatibility of the widget parameter with the its physical limitations.

Parameters

framebuffer_cfg	the widget configuration data
canvas_format	the format of the canvas

Implements GraphicDisplayDevice.

◆ clear_device_screen_buffer()

void ST7735::clear_device_screen_buffer ( ColorIndex color_index = ColorIndex::BLACK )

virtual

fill the internal ST7735 screen buffer with the given color. Default to BLACK, clear the internal buffer

Parameters

color_index

Reimplemented in rtos_ST7735.

Here is the call graph for this function:

◆ config_device_specific_size_and_offsets()

void ST7735::config_device_specific_size_and_offsets ( struct_ConfigST7735 device_config )

protected

config specific device size and offsets

Parameters

device_config the device configuration file

Here is the caller graph for this function:

◆ config_frame_rate_control()

void ST7735::config_frame_rate_control ( )

protected

config framerate control

Frame rate control -Set the frame frequency of the full colors normal mode.

Frame rate=fosc/((param[1] x 2 + 40) x (LINE + param[2] + param[3] +2)) -fosc = 850kHz -FPA > 0, BPA > 0 FRMCTR1 , [0x01, 0x2C, 0x2D] normal mode fastest refresh, 6 lines front, 3 lines back FRMCTR2 , [0x01, 0x2C, 0x2D] idle mode fastest refresh, 6 lines front, 3 lines back FRMCTR3 , [0x01, 0x2c, 0x2d, 0x01, 0x2c, 0x2d], partial mode sleep 10us

Here is the call graph for this function:

Here is the caller graph for this function:

◆ config_gamma()

void ST7735::config_gamma ( )

protected

column row address set CASET , [0x00,0x01,0x00, width-1] RASET , [0x00,0x01,0x00, height-1] we start column 1

ST77XX_CASET, 4, // 1: Column addr set, 4 args, no delay: 0x00, 0x02, // XSTART = 0 0x00, 0x7F+0x02, // XEND = 127 ST77XX_RASET, 4, // 2: Row addr set, 4 args, no delay: 0x00, 0x01, // XSTART = 0 0x00, 0x9F+0x01 }, // XEND = 159

gamma correction GMCTRP1 , [0x02, 0x1c, 0x07, 0x12, 0x37, 0x32, 0x29, 0x2d, 0x29, 0x25, 0x2b, 0x39, 0x00, 0x01, 0x03, 0x10] GMCTRN1 , [0x03, 0x1d, 0x07, 0x06, 0x2e, 0x2c, 0x29, 0x2d, 0x2e, 0x2e, 0x37, 0x3f, 0x00, 0x00, 0x02, 0x10]

Here is the call graph for this function:

Here is the caller graph for this function:

◆ config_inversion_control()

void ST7735::config_inversion_control ( )

protected

config display inversion control

display inversion control INVCTR , [0x07] column inversion and no dot inversion for Normal, Idle and partial mode

Here is the call graph for this function:

Here is the caller graph for this function:

◆ config_power_control()

void ST7735::config_power_control ( )

protected

config power control

power control PWCTR1 , [0xA2,0x02,0x84] PWCTR2 , [0xC5] VGH = 14.7V, VGL = -7.35V PWCTR3 , [0x0A, 0x00] opamp current small, boost frequency PWCTR4 , [0x8A, 0x2A] opamp current small, boost frequency PWCTR5 , [0x8A, 0xEE] opamp current small, boost frequency VMCTR1 , [0x0E]

Here is the call graph for this function:

Here is the caller graph for this function:

◆ device_wakeup()

void ST7735::device_wakeup ( )

protected

wake up the device from sleep mode

_ wake up_ harware_reset SW_reset, sleep 150us SLPOUT, sleep 150us

Here is the call graph for this function:

Here is the caller graph for this function:

◆ enable_command_pin()

void ST7735::enable_command_pin ( bool enable )

protected

enable or disable the command mode (DC pin low or high)

Parameters

enable true for command mode, false for data mode

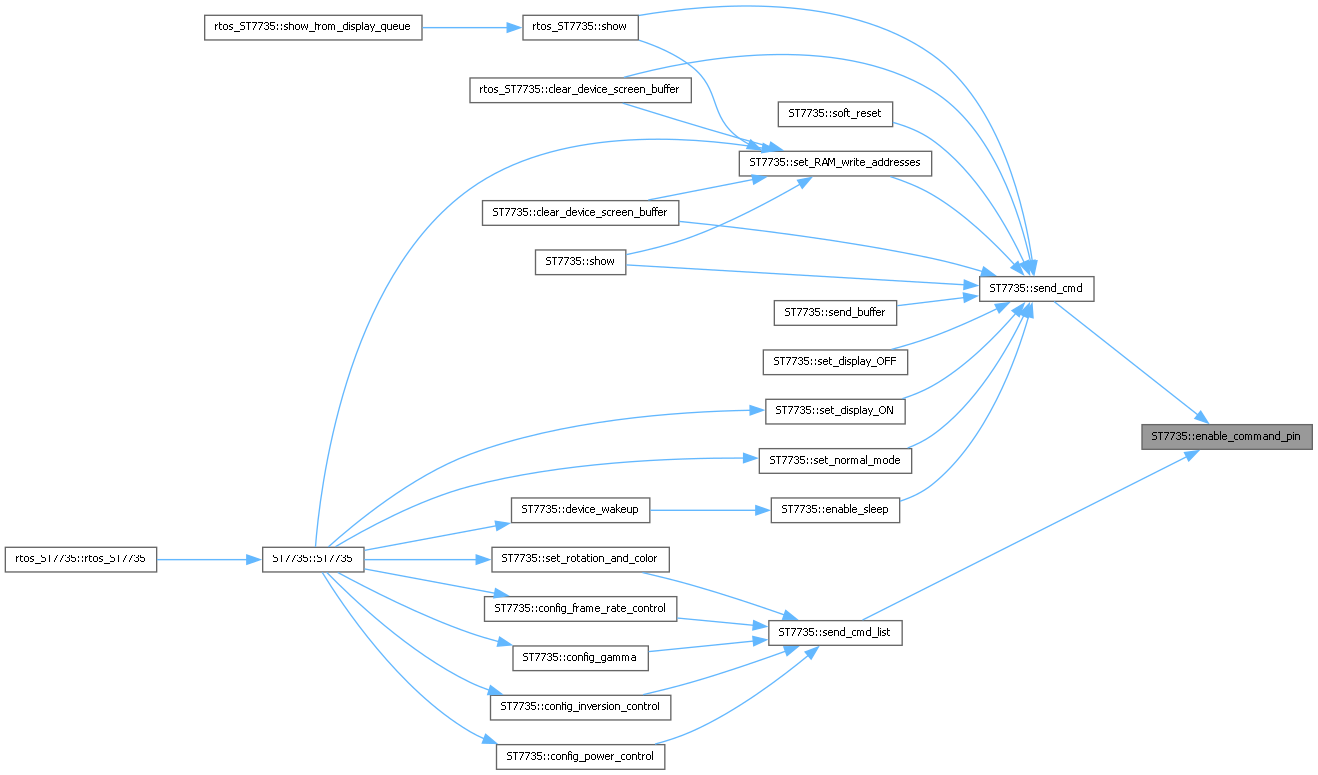

Here is the caller graph for this function:

◆ enable_sleep()

void ST7735::enable_sleep ( bool enable )

turn the display in sleep mode on/off

Parameters

enable

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_buffer()

void ST7735::send_buffer	(	uint8_t *	buffer,
		size_t	buffer_len )

protected

send a buffer of data to the ST7735 device

Parameters

buffer	a pointer to the buffer
buffer_len	the length of the buffer

Here is the call graph for this function:

◆ send_cmd()

void ST7735::send_cmd ( uint8_t cmd )

protected

send a command to the ST7735 device

init for "green tab" version of display ... I don't know why

Parameters

cmd	the command to be sent

Here is the call graph for this function:

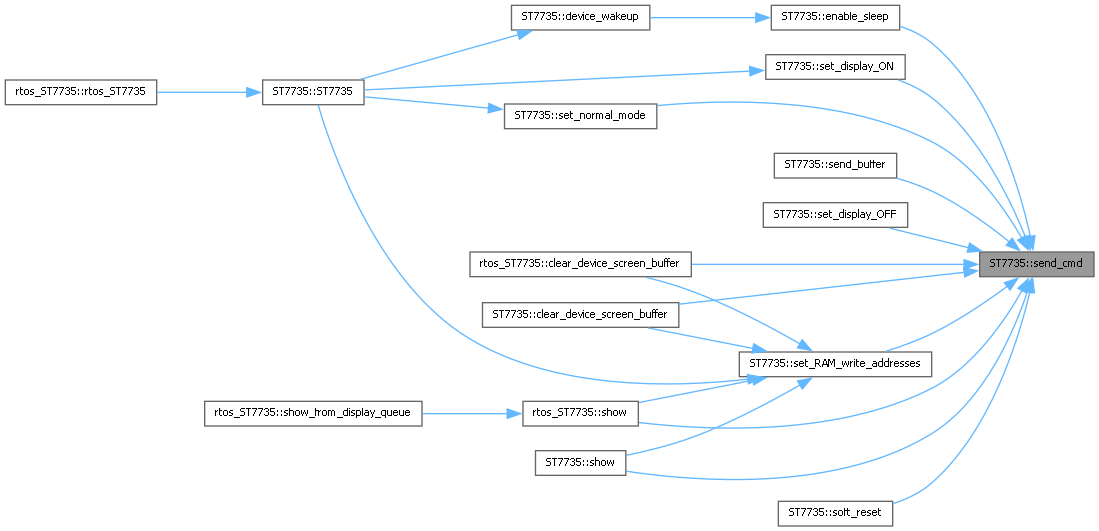

Here is the caller graph for this function:

◆ send_cmd_list()

void ST7735::send_cmd_list	(	uint8_t *	cmd,
		size_t	len )

protected

send a list of command to the ST7735 device

Parameters

cmd	a pointer to the list of command
len	the length of the command list

Here is the call graph for this function:

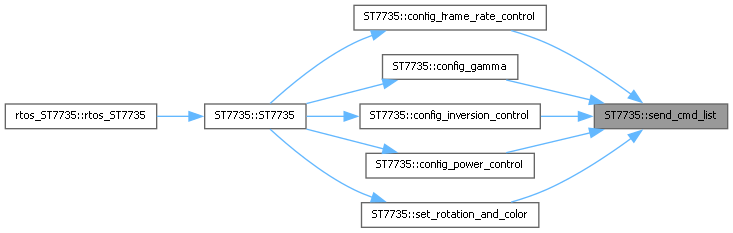

Here is the caller graph for this function:

◆ set_backlight()

void ST7735::set_backlight ( bool on )

protected

set the backlight of the display

Parameters

on

Here is the caller graph for this function:

◆ set_RAM_write_addresses()

void ST7735::set_RAM_write_addresses	(	uint8_t	start_x,
		uint8_t	start_y,
		size_t	width,
		size_t	height )

protected

set the RAM write addresses for the display

Parameters

start_x	the starting x coordinate
start_y	the starting y coordinate
width	the width of the area to write
height	the height of the area to write

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_rotation_and_color()

void ST7735::set_rotation_and_color ( struct_ConfigST7735 device_config )

set the actual position of the display

set rotation and color

Parameters

device_config the device configuration file

Here is the call graph for this function:

Here is the caller graph for this function:

◆ show()

void ST7735::show	(	Canvas *	canvas,
		const uint8_t	anchor_x,
		const uint8_t	anchor_y )

virtual

A pure virtual member function. It transfers the pixel buffer to the a part of display screen buffer starting at the (anchor_x, anchor_y) coordinates of the screen , expressed in pixel. This method takes into account the specific addressing scheme and memory structure of the actual display device.

Parameters

canvas	a pointer to the canvas that contains the buffer to be displayed
anchor_x	the x(horizontal) starting position of the frame within the display screen,(in pixel)
anchor_y	the y(vertical) starting position of the frame within the display screen,(in pixel)

Implements GraphicDisplayDevice.

Reimplemented in rtos_ST7735.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

st7735.h
st7735.cpp
