HW_SPI_Master Class Reference

this is a C++ wrapper for the original pico SDK spi master API More...

#include <hw_spi.h>

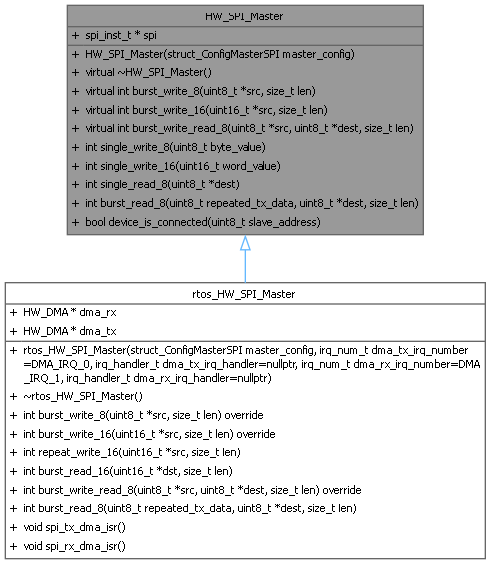

Inheritance diagram for HW_SPI_Master:

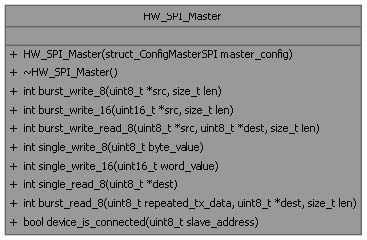

Collaboration diagram for HW_SPI_Master:

Public Member Functions
	HW_SPI_Master (struct_ConfigMasterSPI master_config)
	Construct a new hw spi master object.
virtual int	burst_write_8 (uint8_t *src, size_t len)
	send a serie of 8 bit data on the SPI MOSI port
virtual int	burst_write_16 (uint16_t *src, size_t len)
	send a serie of 16 bit data on the SPI MOSI port
virtual int	burst_write_read_8 (uint8_t *src, uint8_t *dest, size_t len)
	read / write a serie of 8 bit data on the SPI MISO/MOSI ports
int	single_write_8 (uint8_t byte_value)
	write a single byte on the SPI MOSI port
int	single_write_16 (uint16_t word_value)
	write a single 16bit word on the SPI MOSI port
int	single_read_8 (uint8_t *dest)
	read a single byte on the SPI MISO port
int	burst_read_8 (uint8_t repeated_tx_data, uint8_t *dest, size_t len)
	read a serie of byte on the SPI MISO port
bool	device_is_connected (uint8_t slave_address)
	a test that checks if the slave_address device is connected

Public Attributes
spi_inst_t *	spi
	the spi hardware instance of the Pico that handles the spi master

Detailed Description

this is a C++ wrapper for the original pico SDK spi master API

Constructor & Destructor Documentation

HW_SPI_Master()

HW_SPI_Master::HW_SPI_Master

(

struct_ConfigMasterSPI

master_config

)

Construct a new hw spi master object.

Parameters

master_config

Here is the caller graph for this function:

Member Function Documentation

burst_read_8()

int HW_SPI_Master::burst_read_8	(	uint8_t	repeated_tx_data,
		uint8_t *	dest,
		size_t	len )

read a serie of byte on the SPI MISO port

Parameters

repeated_tx_data	the byte sent on MOSI port during the read transfer
dest	the destination that receives the data
len	the length of the serie

Returns

int

burst_write_16()

int HW_SPI_Master::burst_write_16 ( uint16_t * src, size_t len )

virtual

send a serie of 16 bit data on the SPI MOSI port

Parameters

src	the source of the data
len	the lenght of the serie

Returns

int the number of byte sent

Reimplemented in rtos_HW_SPI_Master.

burst_write_8()

int HW_SPI_Master::burst_write_8 ( uint8_t * src, size_t len )

virtual

send a serie of 8 bit data on the SPI MOSI port

Parameters

src	the source of the data
len	the lenght of the serie

Returns

int the number of byte sent

Reimplemented in rtos_HW_SPI_Master.

burst_write_read_8()

int HW_SPI_Master::burst_write_read_8 ( uint8_t * src, uint8_t * dest, size_t len )

virtual

read / write a serie of 8 bit data on the SPI MISO/MOSI ports

Parameters

src	the source of the data
dest	the destination of the data
len	the length of the serie

Returns

int

Reimplemented in rtos_HW_SPI_Master.

device_is_connected()

bool HW_SPI_Master::device_is_connected

(

uint8_t

slave_address

)

a test that checks if the slave_address device is connected

Parameters

slave_address

Returns

true

false

single_read_8()

int HW_SPI_Master::single_read_8

(

uint8_t *

dest

)

read a single byte on the SPI MISO port

Parameters

dest	the destination that receives the data

Returns

int

single_write_16()

int HW_SPI_Master::single_write_16

(

uint16_t

word_value

)

write a single 16bit word on the SPI MOSI port

Parameters

word_value

Returns

int

single_write_8()

int HW_SPI_Master::single_write_8

(

uint8_t

byte_value

)

write a single byte on the SPI MOSI port

Parameters

byte_value

Returns

int

---

The documentation for this class was generated from the following files:

• hw_spi.h
• hw_spi.cpp
