SwitchButton status is sampled periodically by software. More...

#include <switch_button.h>

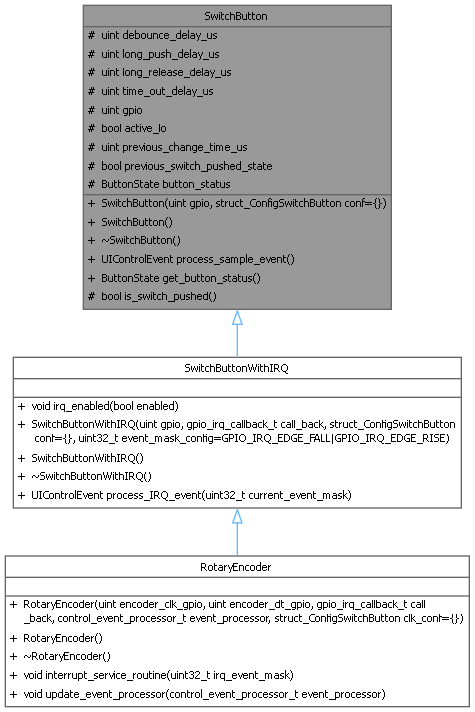

Inheritance diagram for SwitchButton:

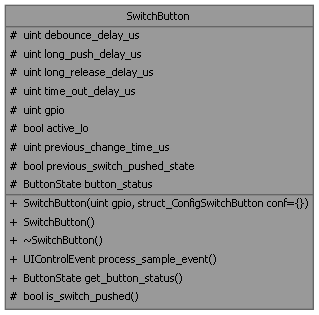

Collaboration diagram for SwitchButton:

Public Member Functions
	SwitchButton (uint gpio, struct_ConfigSwitchButton conf={})
	Construct a new SwitchButton object.

	~SwitchButton ()
	Destroy the SwitchButton object.

UIControlEvent	process_sample_event ()
	the periodic routine that process deboucing, push and release of the switch.

ButtonState	get_button_status ()
	Get the button status object.

Protected Member Functions
bool	is_switch_pushed ()
	return the status of the switch.

Protected Attributes
uint	debounce_delay_us
	The time during which all changes in the switch state is ignored.

uint	long_push_delay_us
	when a button is pushed more than long_push_delay_us (in microseconds) a UIControlEvent::LONG_PUSH is returned.

uint	long_release_delay_us
	if the button is released after long_release_delay_us (in microseconds) a UIControlEvent::RELEASED_AFTER_LONG_TIME is returned, else a UIControlEvent::RELEASED_AFTER_SHORT_TIME is released.

uint	time_out_delay_us
	if the button is released after time_out_delay_us (in microseconds) a UIControlEvent::TIME_OUT is returned,

uint	gpio
	the GPIO that reads the logical state of the switch (pushed or released)

bool	active_lo
	his indicates that when the switch is pushed, a logical LO (0) signal is read.

uint	previous_change_time_us
	the system time stored on the previous switch state change.

bool	previous_switch_pushed_state
	The previous state read during the previous period.

ButtonState	button_status {ButtonState::IDLE}
	the logical button status, required to manage the event returned when the switch is pushed or released.

Detailed Description

SwitchButton status is sampled periodically by software.

Switch status is the status of the physical (i.e. mechanical) switch device.
Button status is the logical status of the button (regardless if the switch is wired active Lo or HI).

During each period, the status of the button is compared to the previous status and the function member process_sample_event() return an event accordingly.

SwitchButton can be associated with UIController if button belongs to a GUI. In such case a new class must be created that inherits from SwitchButton and UIController.

SwitchButton times references for short release

SwitchButton times references for long release

Constructor & Destructor Documentation

◆ SwitchButton()

SwitchButton::SwitchButton	(	uint	gpio,
		struct_ConfigSwitchButton	conf = {} )

Construct a new SwitchButton object.

Parameters

gpio	the microcontroller GPIO that read the switch status
conf	the configuration data according struct_ConfigSwitchButton

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

◆ get_button_status()

ButtonState SwitchButton::get_button_status ( )

Get the button status object.

Returns: ButtonState

◆ is_switch_pushed()

bool SwitchButton::is_switch_pushed ( )

protected

return the status of the switch.

Returns: true if switch status is read LO (resp. HI) if active_lo is true (resp. false); false if switch status is read HI (resp. LO) if active_lo is true (resp. false)

Here is the caller graph for this function:
