#include "pico/stdio.h"
#include "pico/stdlib.h"
#include <stdio.h>
#include "sw/ui_core/ui_control_event.h"

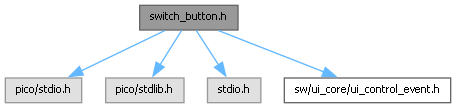

Include dependency graph for switch_button.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	struct_ConfigSwitchButton
	These are the values used to configure a switch button (0) debounce_delay_us (1) long_release_delay_us (2) long_push_delay_us (3) time_out_delay_us (4) active_lo. More...

class	SwitchButton
	SwitchButton status is sampled periodically by software. More...

class	SwitchButtonWithIRQ
	SwitchButtonWithIRQ status is processed by an Interrupt Service Routine. It is derived from SwithButton, but debouncing, press and release are processed differently. More...

Macros
#define	GPIO_HI true
	the boolean meaning for GPIO_HI

#define	GPIO_LO false
	the boolean meaning for GPIO_LO

#define	DEBOUNCE_us 10000
	the default value for debounce_delay_us

#define	LONG_RELEASE_DELAY_us 1000000
	the default value for LONG_RELEASE_DELAY_us

#define	LONG_PUSH_DELAY_us 1000000
	the default value for LONG_PUSH_DELAY_us

#define	TIME_OUT_DELAY_us 5000000
	the default value for TIME_OUT_DELAY_us

Enumerations
enum class	ButtonState { IDLE , ACTIVE , RELEASE_PENDING , TIME_OUT_PENDING , IDLE , ACTIVE , RELEASE_PENDING , TIME_OUT_PENDING }
	The logical state of the switch (0) IDLE (1) ACTIVE (2) RELEASE_PENDING (3) TIME_OUT_PENDING. More...

Detailed Description

Enumeration Type Documentation

strong

The logical state of the switch (0) IDLE (1) ACTIVE (2) RELEASE_PENDING (3) TIME_OUT_PENDING.

Enumerator
IDLE	The button is inactive.
ACTIVE	the switch has been pushed, the button is active
RELEASE_PENDING	A long push has been detected, the switch wait to be released.
TIME_OUT_PENDING	the switch has beeb released, the button wait for next action. If nothing occurs, a time_out event is returned and the button is inactive
IDLE	The button is inactive.
ACTIVE	the switch has been pushed, the button is active
RELEASE_PENDING	A long push has been detected, the switch wait to be released.
TIME_OUT_PENDING	the switch has beeb released, the button wait for next action. If nothing occurs, a time_out event is returned and the button is inactive
