SwitchButtonWithIRQ Class Reference

SwitchButtonWithIRQ status is processed by an Interrupt Service Routine. It is derived from SwithButton, but debouncing, press and release are processed differently. More...

#include <switch_button.h>

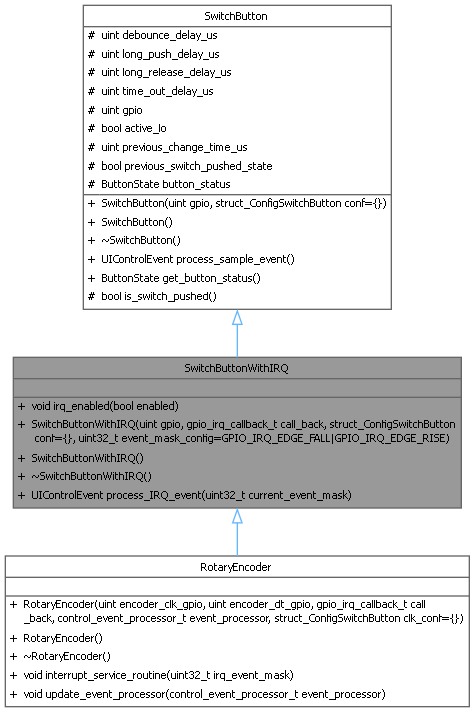

Inheritance diagram for SwitchButtonWithIRQ:

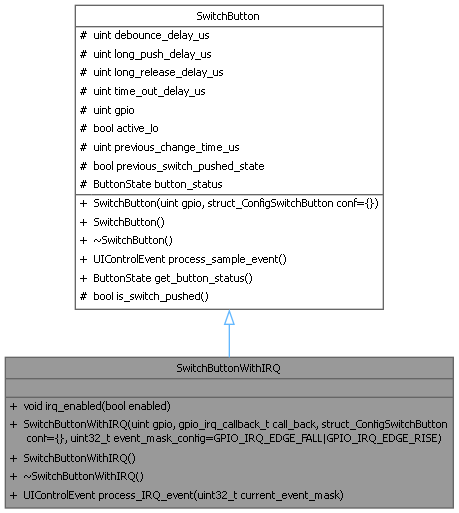

Collaboration diagram for SwitchButtonWithIRQ:

Public Member Functions
void	irq_enabled (bool enabled)
	"AND" function used to enable/disable interrupt during Interrupt Service Routine (ISR)
	SwitchButtonWithIRQ (uint gpio, gpio_irq_callback_t call_back, struct_ConfigSwitchButton conf={}, uint32_t event_mask_config=GPIO_IRQ_EDGE_FALL|GPIO_IRQ_EDGE_RISE)
	Construct a new SwitchButtonWithIRQ object.
	~SwitchButtonWithIRQ ()
	Destroy the SwitchButtonWithIRQ object.
UIControlEvent	process_IRQ_event (uint32_t current_event_mask)
	Process IRQ event and return the resulting event.
Public Member Functions inherited from SwitchButton
	SwitchButton (uint gpio, struct_ConfigSwitchButton conf={})
	Construct a new SwitchButton object.
	~SwitchButton ()
	Destroy the SwitchButton object.
UIControlEvent	process_sample_event ()
	the periodic routine that process deboucing, push and release of the switch.
ButtonState	get_button_status ()
	Get the button status object.

Private Member Functions
bool	is_switch_pushed (uint32_t current_event_mask)
	return the logical status of the switch. It process rising and falling edges of the interrupt, according to the active_lo status of the switch.

Private Attributes
uint32_t	irq_event_mask_config
	A memory slot reserved to store the irq_event_mask.

Additional Inherited Members
Protected Member Functions inherited from SwitchButton
bool	is_switch_pushed ()
	return the status of the switch.
Protected Attributes inherited from SwitchButton
uint	debounce_delay_us
	The time during which all changes in the switch state is ignored.
uint	long_push_delay_us
	when a button is pushed more than long_push_delay_us (in microseconds) a UIControlEvent::LONG_PUSH is returned.
uint	long_release_delay_us
	if the button is released after long_release_delay_us (in microseconds) a UIControlEvent::RELEASED_AFTER_LONG_TIME is returned, else a UIControlEvent::RELEASED_AFTER_SHORT_TIME is released.
uint	time_out_delay_us
	if the button is released after time_out_delay_us (in microseconds) a UIControlEvent::TIME_OUT is returned,
uint	gpio
	the GPIO that reads the logical state of the switch (pushed or released)
bool	active_lo
	his indicates that when the switch is pushed, a logical LO (0) signal is read.
uint	previous_change_time_us
	the system time stored on the previous switch state change.
bool	previous_switch_pushed_state
	The previous state read during the previous period.
ButtonState	button_status {ButtonState::IDLE}
	the logical button status, required to manage the event returned when the switch is pushed or released.

Detailed Description

SwitchButtonWithIRQ status is processed by an Interrupt Service Routine. It is derived from SwithButton, but debouncing, press and release are processed differently.

Note

WARNING: LONG_PUSH and TIME_OUT cannot be implemented by processing IRQ. NOTICE: SwitchButtonWithIRQ can be associated with UIController only if button belongs to a UI.

NOTICE: the test program for switch button with IRQ is implemented with the rotary encoder device, which is a good example of what can be done with and without IRQ

Constructor & Destructor Documentation

SwitchButtonWithIRQ()

SwitchButtonWithIRQ::SwitchButtonWithIRQ	(	uint	gpio,
		gpio_irq_callback_t	call_back,
		struct_ConfigSwitchButton	conf = {},
		uint32_t	event_mask_config = GPIO_IRQ_EDGE_FALL | GPIO_IRQ_EDGE_RISE )

Construct a new SwitchButtonWithIRQ object.

Parameters

gpio	The microcontroller GPIO connected to the switch
call_back	The ISR (interrupt Service Routine) that process IRQ event
conf	the configuration value of the switch
event_mask_config	the rising/falling edge configuratio of the irq

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

irq_enabled()

void SwitchButtonWithIRQ::irq_enabled

(

bool

enabled

)

"AND" function used to enable/disable interrupt during Interrupt Service Routine (ISR)

Parameters

enabled

Here is the caller graph for this function:

is_switch_pushed()

bool SwitchButtonWithIRQ::is_switch_pushed ( uint32_t current_event_mask )

private

return the logical status of the switch. It process rising and falling edges of the interrupt, according to the active_lo status of the switch.

Parameters

current_event_mask

Returns

true if switch status is read LO (resp. HI) if active_lo is true (resp. false)

false if switch status is read HI (resp. LO) if active_lo is true (resp. false)

process_IRQ_event()

UIControlEvent SwitchButtonWithIRQ::process_IRQ_event

(

uint32_t

current_event_mask

)

Process IRQ event and return the resulting event.

Parameters

current_event_mask

Returns

UIControlEvent

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• switch_button.h
• switch_button.cpp
