#include "hardware/i2c.h"
#include "pico/i2c_slave.h"
#include "pico/stdlib.h"
#include <set>
#include <string>

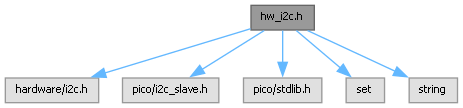

Include dependency graph for hw_i2c.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	struct_I2CXferResult
	this data structure collects result when an I2C transfer is done. It gives a more verbose error description : a context and the number of transfered byte. More...

struct	struct_ConfigMasterI2C
	The configuration data of I2C interface used as Master. More...

struct	struct_ConfigSlaveI2C
	The configuration data of I2C interface used as Slave. More...

class	HW_I2C_Master
	this is a C++ wrapper for the original pico SDK i2c master API More...

struct	struct_SlaveMemory
	this is the structure of the memory used by the slave i2c interface More...

class	HW_I2C_Slave
	this is a C++ wrapper for the original pico SDK i2c slave API More...

Macros
#define	I2C_STANDARD_MODE 100 * 1000
	I2C standard mode speed 100kb/s.

#define	I2C_FAST_MODE 400 * 1000
	I2C fast mode speed 400kb/s.

#define	I2C_FAST_MODE_PLUS 1000 * 1000
	I2C fast mode plus speed 1Mb/s.

#define	I2C_SLAVE_DEFAULT_MAX_MEMORY_SIZE 256
	I2C max buffer memory size, default to 256 words.

Detailed Description

Classes
