rtos_switch_button.h File Reference

#include "pico/stdio.h"
#include "pico/stdlib.h"
#include "hardware/timer.h"
#include <stdio.h>
#include "sw/ui_core/ui_control_event.h"
#include "FreeRTOS.h"
#include "queue.h"
#include "task.h"

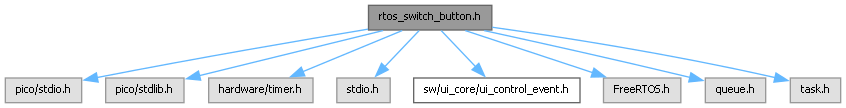

Include dependency graph for rtos_switch_button.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	struct_SwitchButtonIRQData
	this is the structure used to send irq data though the queue More...
struct	struct_ControlEventData
	this is the structure used to transmit control event through the queue More...
struct	struct_rtosConfigSwitchButton
	These are the values used to configure a switch button delays related to action of the button (and generate IRQ) are expressed in microsecond, delays related to an absence of action on the button are expressed in milliseconds. (0) debounce_delay_us (1) long_release_delay_us (2) long_push_delay_ms (3) time_out_delay_ms (4) active_lo. More...
class	rtos_SwitchButton
	rtos_SwitchButton is processed by an Interrupt Service Routine (ISR) under control of FreeRTOS routines. More...

Macros
#define	GPIO_HI   true
	the boolean meaning for GPIO_HI
#define	GPIO_LO   false
	the boolean meaning for GPIO_LO
#define	DEBOUNCE_us   10000
	the default value for debounce_delay_us
#define	LONG_RELEASE_DELAY_us   1000000
	the default value for LONG_RELEASE_DELAY_us
#define	LONG_PUSH_DELAY_ms   1000
	the default value for LONG_PUSH_DELAY_us
#define	TIME_OUT_DELAY_ms   5000
	the default value for TIME_OUT_DELAY_us

Enumerations
enum class	ButtonState {   IDLE , ACTIVE , RELEASE_PENDING , TIME_OUT_PENDING ,   IDLE , ACTIVE , RELEASE_PENDING , TIME_OUT_PENDING }
	The logical state of the switch (0) IDLE (1) ACTIVE (2) RELEASE_PENDING (3) TIME_OUT_PENDING. More...

Detailed Description

Author

xiansnn (xians.nosp@m.nn@h.nosp@m.otmai.nosp@m.l.co.nosp@m.m)

Version

0.1

Date

2025-08-14

Copyright

Copyright (c) 2025

Enumeration Type Documentation

ButtonState

enum class ButtonState

strong

The logical state of the switch (0) IDLE (1) ACTIVE (2) RELEASE_PENDING (3) TIME_OUT_PENDING.

Enumerator
IDLE	The button is inactive.
ACTIVE	the switch has been pushed, the button is active
RELEASE_PENDING	A long push has been detected, the switch wait to be released.
TIME_OUT_PENDING	the switch has beeb released, the button wait for next action. If nothing occurs, a time_out event is returned and the button is inactive
IDLE	The button is inactive.
ACTIVE	the switch has been pushed, the button is active
RELEASE_PENDING	A long push has been detected, the switch wait to be released.
TIME_OUT_PENDING	the switch has beeb released, the button wait for next action. If nothing occurs, a time_out event is returned and the button is inactive
