rtos_SwitchButton is processed by an Interrupt Service Routine (ISR) under control of FreeRTOS routines. More...

#include <rtos_switch_button.h>

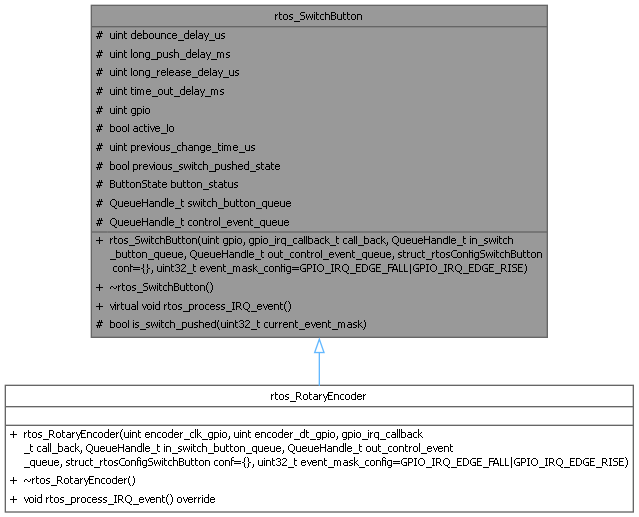

Inheritance diagram for rtos_SwitchButton:

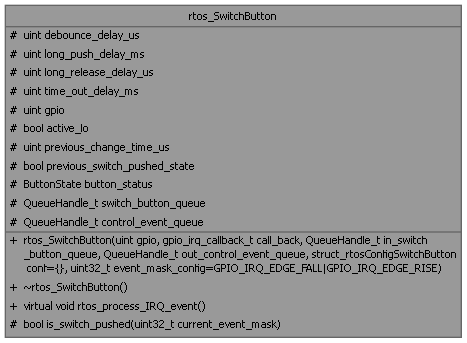

Collaboration diagram for rtos_SwitchButton:

Public Member Functions
	rtos_SwitchButton (uint gpio, gpio_irq_callback_t call_back, QueueHandle_t control_event_destination_queue, struct_rtosConfigSwitchButton conf={}, uint32_t event_mask_config=GPIO_IRQ_EDGE_FALL\|GPIO_IRQ_EDGE_RISE)
	Construct a new rtos Switch Button object.

	~rtos_SwitchButton ()
	Destroy the SwitchButton object.

virtual void	rtos_process_IRQ_event ()
	Process IRQ event and sent the resulting event to the event queue.

Public Attributes
QueueHandle_t	IRQdata_input_queue
	the queue from which IRQ data are received

Protected Member Functions
bool	is_switch_pushed (uint32_t current_event_mask)
	return the logical status of the switch. It process rising and falling edges of the interrupt, according to the active_lo status of the switch.

Protected Attributes
uint	debounce_delay_us
	The time during which all changes in the switch state is ignored.

uint	long_push_delay_ms
	when a button is pushed more than long_push_delay_ms (in milliseconds) a UIControlEvent::LONG_PUSH is returned.

uint	long_release_delay_us
	if the button is released after long_release_delay_us (in microseconds) a UIControlEvent::RELEASED_AFTER_LONG_TIME is returned, else a UIControlEvent::RELEASED_AFTER_SHORT_TIME is released.

uint	time_out_delay_ms
	if the button is released after time_out_delay_ms (in milliseconds) a UIControlEvent::TIME_OUT is returned,

uint	gpio
	the GPIO that reads the logical state of the switch (pushed or released)

bool	active_lo
	his indicates that when the switch is pushed, a logical LO (0) signal is read.

uint	previous_change_time_us
	the system time stored on the previous switch state change.

bool	previous_switch_pushed_state
	The previous state read during the previous period.

ButtonState	button_status {ButtonState::IDLE}
	the logical button status, required to manage the event returned when the switch is pushed or released.

QueueHandle_t	control_event_queue
	the queue to which the resulting control event is sent

Private Attributes
uint32_t	irq_event_mask_config
	A memory slot reserved to store the irq_event_mask.

Detailed Description

rtos_SwitchButton is processed by an Interrupt Service Routine (ISR) under control of FreeRTOS routines.

Switch status is the status of the physical (i.e. mechanical) switch device.
Button status is the logical status of the button (regardless if the switch is wired active Lo or HI).

During each ISR, the status of the button is compared to the previous status and the function member rtos_process_IRQ_event() sends an event accordingly toward the control_event output queue.

SwitchButton can be associated with UIController if button belongs to a GUI. In such case a new class must be created that inherits from rtos_SwitchButton and UIController.

SwitchButton times references for long release

NOTICE: the test program for rtos switch button is implemented with the rotary encoder device, which is a good example of what can be done with IRQ

Constructor & Destructor Documentation

◆ rtos_SwitchButton()

rtos_SwitchButton::rtos_SwitchButton	(	uint	gpio,
		gpio_irq_callback_t	call_back,
		QueueHandle_t	control_event_destination_queue,
		struct_rtosConfigSwitchButton	conf = {},
		uint32_t	event_mask_config = GPIO_IRQ_EDGE_FALL \| GPIO_IRQ_EDGE_RISE )

Construct a new rtos Switch Button object.

Parameters

gpio	The microcontroller GPIO connected to the switch
call_back	The ISR (interrupt Service Routine) that process IRQ event
control_event_destination_queue	the output queue that receives computed control event
conf	the configuration value of the switch
event_mask_config	the rising/falling edge configuratio of the irq

Here is the caller graph for this function:

Member Function Documentation

◆ is_switch_pushed()

bool rtos_SwitchButton::is_switch_pushed ( uint32_t current_event_mask )

protected

return the logical status of the switch. It process rising and falling edges of the interrupt, according to the active_lo status of the switch.

Parameters

current_event_mask

Returns: true if switch status is read LO (resp. HI) if active_lo is true (resp. false); false if switch status is read HI (resp. LO) if active_lo is true (resp. false)

Here is the caller graph for this function:

◆ rtos_process_IRQ_event()

void rtos_SwitchButton::rtos_process_IRQ_event ( )

virtual

Process IRQ event and sent the resulting event to the event queue.

Reimplemented in rtos_RotaryEncoder.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

rtos_switch_button.h
rtos_switch_button.cpp
