rtos_RotaryEncoder Class Reference

The RotaryEncoder is a device used to control a value the can be incremented/decremented by the user. It can be associated with UIControlledIncrementalValue. More...

#include <rtos_rotary_encoder.h>

Inheritance diagram for rtos_RotaryEncoder:

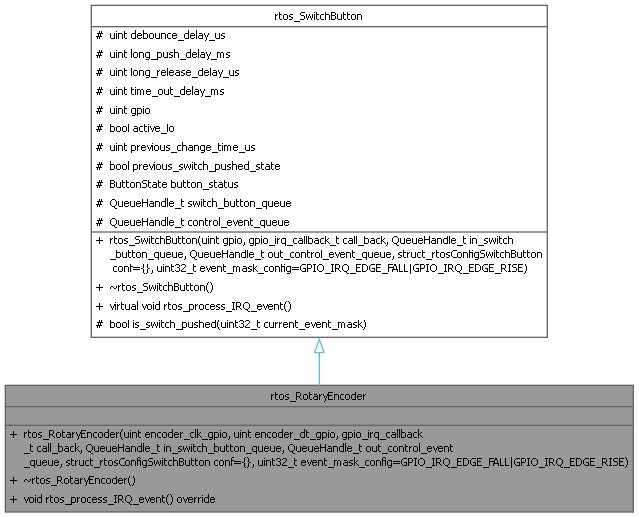

Collaboration diagram for rtos_RotaryEncoder:

Public Member Functions
	rtos_RotaryEncoder (uint encoder_clk_gpio, uint encoder_dt_gpio, gpio_irq_callback_t call_back, QueueHandle_t out_control_event_queue, struct_rtosConfigSwitchButton conf={}, uint32_t event_mask_config=GPIO_IRQ_EDGE_FALL|GPIO_IRQ_EDGE_RISE)
	Construct a new Rotary Encoder object compliant with FreeRTOS.
	~rtos_RotaryEncoder ()
	Destroy the Rotary Encoder object.
void	rtos_process_IRQ_event () override
	Process IRQ event and sent the resulting event to the event queue.
Public Member Functions inherited from rtos_SwitchButton
	rtos_SwitchButton (uint gpio, gpio_irq_callback_t call_back, QueueHandle_t control_event_destination_queue, struct_rtosConfigSwitchButton conf={}, uint32_t event_mask_config=GPIO_IRQ_EDGE_FALL|GPIO_IRQ_EDGE_RISE)
	Construct a new rtos Switch Button object.
	~rtos_SwitchButton ()
	Destroy the SwitchButton object.

Private Attributes
uint	dt_gpio
	the GPIO pin connected to the Data pin of the rotary encoder

Additional Inherited Members
Public Attributes inherited from rtos_SwitchButton
QueueHandle_t	IRQdata_input_queue
	the queue from which IRQ data are received
Protected Member Functions inherited from rtos_SwitchButton
bool	is_switch_pushed (uint32_t current_event_mask)
	return the logical status of the switch. It process rising and falling edges of the interrupt, according to the active_lo status of the switch.
Protected Attributes inherited from rtos_SwitchButton
uint	debounce_delay_us
	The time during which all changes in the switch state is ignored.
uint	long_push_delay_ms
	when a button is pushed more than long_push_delay_ms (in milliseconds) a UIControlEvent::LONG_PUSH is returned.
uint	long_release_delay_us
	if the button is released after long_release_delay_us (in microseconds) a UIControlEvent::RELEASED_AFTER_LONG_TIME is returned, else a UIControlEvent::RELEASED_AFTER_SHORT_TIME is released.
uint	time_out_delay_ms
	if the button is released after time_out_delay_ms (in milliseconds) a UIControlEvent::TIME_OUT is returned,
uint	gpio
	the GPIO that reads the logical state of the switch (pushed or released)
bool	active_lo
	his indicates that when the switch is pushed, a logical LO (0) signal is read.
uint	previous_change_time_us
	the system time stored on the previous switch state change.
bool	previous_switch_pushed_state
	The previous state read during the previous period.
ButtonState	button_status {ButtonState::IDLE}
	the logical button status, required to manage the event returned when the switch is pushed or released.
QueueHandle_t	control_event_queue
	the queue to which the resulting control event is sent

Detailed Description

The RotaryEncoder is a device used to control a value the can be incremented/decremented by the user. It can be associated with UIControlledIncrementalValue.

A rotary encoder has two signals: one can be considered as a clock (clk) , the other as the data (dt).

Clock signal is produced by rotating the encoder. Each time a falling edge is generated on the clock, the value on dt gives the direction of the rotation.

Due to the short time between clk and dt, we cannot usually sample the signals. IRQ is more appropriate.

As a UIController, the rotary encoder is associated with a Model.

Constructor & Destructor Documentation

rtos_RotaryEncoder()

rtos_RotaryEncoder::rtos_RotaryEncoder	(	uint	encoder_clk_gpio,
		uint	encoder_dt_gpio,
		gpio_irq_callback_t	call_back,
		QueueHandle_t	out_control_event_queue,
		struct_rtosConfigSwitchButton	conf = {},
		uint32_t	event_mask_config = GPIO_IRQ_EDGE_FALL | GPIO_IRQ_EDGE_RISE )

Construct a new Rotary Encoder object compliant with FreeRTOS.

Parameters

encoder_clk_gpio	The GPIO pin connected to the Clock pin of the rotary encoder
encoder_dt_gpio	The GPIO pin connected to the Data pin of the rotary encoder
call_back	The IRQ callback function
out_control_event_queue	The output queue receiving control events
conf	The clock configuration (as a debounced switch)
event_mask_config	The IRQ mask configuration

Here is the call graph for this function:

Member Function Documentation

rtos_process_IRQ_event()

void rtos_RotaryEncoder::rtos_process_IRQ_event ( )

overridevirtual

Process IRQ event and sent the resulting event to the event queue.

Reimplemented from rtos_SwitchButton.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• rtos_rotary_encoder.h
• rtos_rotary_encoder.cpp
