RotaryEncoder Class Reference

The RotaryEncoder is a device used to control a value the can be incremented/decremented by the user. It can be associated with UIControlledIncrementalValue. More...

#include <rotary_encoder.h>

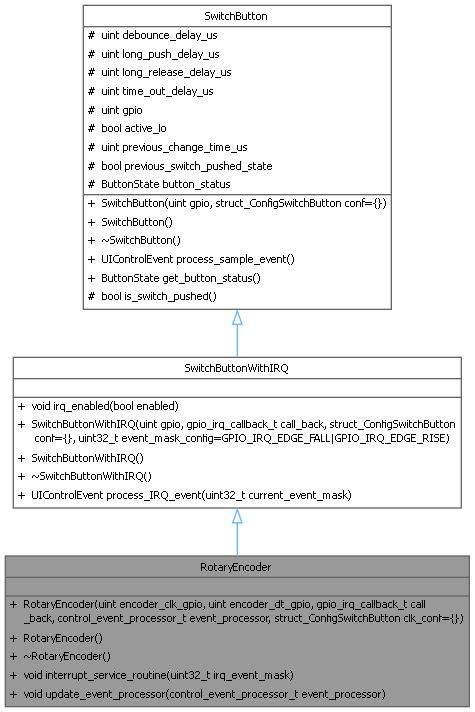

Inheritance diagram for RotaryEncoder:

Collaboration diagram for RotaryEncoder:

Public Member Functions
	RotaryEncoder (uint encoder_clk_gpio, uint encoder_dt_gpio, gpio_irq_callback_t call_back, control_event_processor_t event_processor, struct_ConfigSwitchButton clk_conf={})
	Construct a new Rotary Encoder object.
	~RotaryEncoder ()
	Destroy the Rotary Encoder object.
void	interrupt_service_routine (uint32_t irq_event_mask)
	the ISR that process the IRQ and send UIControlEvent to the Model currentControlledObject.
void	update_event_processor (control_event_processor_t event_processor)
	This member is used to update the function pointer to the UIController.
Public Member Functions inherited from SwitchButtonWithIRQ
void	irq_enabled (bool enabled)
	"AND" function used to enable/disable interrupt during Interrupt Service Routine (ISR)
	SwitchButtonWithIRQ (uint gpio, gpio_irq_callback_t call_back, struct_ConfigSwitchButton conf={}, uint32_t event_mask_config=GPIO_IRQ_EDGE_FALL|GPIO_IRQ_EDGE_RISE)
	Construct a new SwitchButtonWithIRQ object.
	~SwitchButtonWithIRQ ()
	Destroy the SwitchButtonWithIRQ object.
UIControlEvent	process_IRQ_event (uint32_t current_event_mask)
	Process IRQ event and return the resulting event.
Public Member Functions inherited from SwitchButton
	SwitchButton (uint gpio, struct_ConfigSwitchButton conf={})
	Construct a new SwitchButton object.
	~SwitchButton ()
	Destroy the SwitchButton object.
UIControlEvent	process_sample_event ()
	the periodic routine that process deboucing, push and release of the switch.
ButtonState	get_button_status ()
	Get the button status object.

Additional Inherited Members
Protected Member Functions inherited from SwitchButton
bool	is_switch_pushed ()
	return the status of the switch.
Protected Attributes inherited from SwitchButton
uint	debounce_delay_us
	The time during which all changes in the switch state is ignored.
uint	long_push_delay_us
	when a button is pushed more than long_push_delay_us (in microseconds) a UIControlEvent::LONG_PUSH is returned.
uint	long_release_delay_us
	if the button is released after long_release_delay_us (in microseconds) a UIControlEvent::RELEASED_AFTER_LONG_TIME is returned, else a UIControlEvent::RELEASED_AFTER_SHORT_TIME is released.
uint	time_out_delay_us
	if the button is released after time_out_delay_us (in microseconds) a UIControlEvent::TIME_OUT is returned,
uint	gpio
	the GPIO that reads the logical state of the switch (pushed or released)
bool	active_lo
	his indicates that when the switch is pushed, a logical LO (0) signal is read.
uint	previous_change_time_us
	the system time stored on the previous switch state change.
bool	previous_switch_pushed_state
	The previous state read during the previous period.
ButtonState	button_status {ButtonState::IDLE}
	the logical button status, required to manage the event returned when the switch is pushed or released.

Detailed Description

The RotaryEncoder is a device used to control a value the can be incremented/decremented by the user. It can be associated with UIControlledIncrementalValue.

A rotary encoder has two signals: one can be considered as a clock (clk) , the other as the data (dt).

Clock signal is produced by rotating the encoder. Each time a falling edge is generated on the clock, the value on dt gives the direction of the rotation.

Due to the short time between clk and dt, we cannot usually sample the signals. IRQ is more appropriate.

As a UIController, the rotary encoder is associated with a Model.

Constructor & Destructor Documentation

RotaryEncoder()

RotaryEncoder::RotaryEncoder	(	uint	encoder_clk_gpio,
		uint	encoder_dt_gpio,
		gpio_irq_callback_t	call_back,
		control_event_processor_t	event_processor,
		struct_ConfigSwitchButton	clk_conf = {} )

Construct a new Rotary Encoder object.

Parameters

encoder_clk_gpio
encoder_dt_gpio
call_back
event_processor
clk_conf

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

interrupt_service_routine()

void RotaryEncoder::interrupt_service_routine

(

uint32_t

irq_event_mask

)

the ISR that process the IRQ and send UIControlEvent to the Model currentControlledObject.

Parameters

irq_event_mask

Here is the call graph for this function:

update_event_processor()

void RotaryEncoder::update_event_processor

(

control_event_processor_t

event_processor

)

This member is used to update the function pointer to the UIController.

Notice: we can not directly points to the bound member!

Parameters

event_processor

---

The documentation for this class was generated from the following files:

• rotary_encoder.h
• rotary_encoder.cpp
