UIControlledIncrementalValue Class Reference

The UIControlledIncrementalValue is a kind of Model that have special feature such as a value that can be incremented or decremented. This value runs between a min_value and a max_value. More...

#include <ui_core.h>

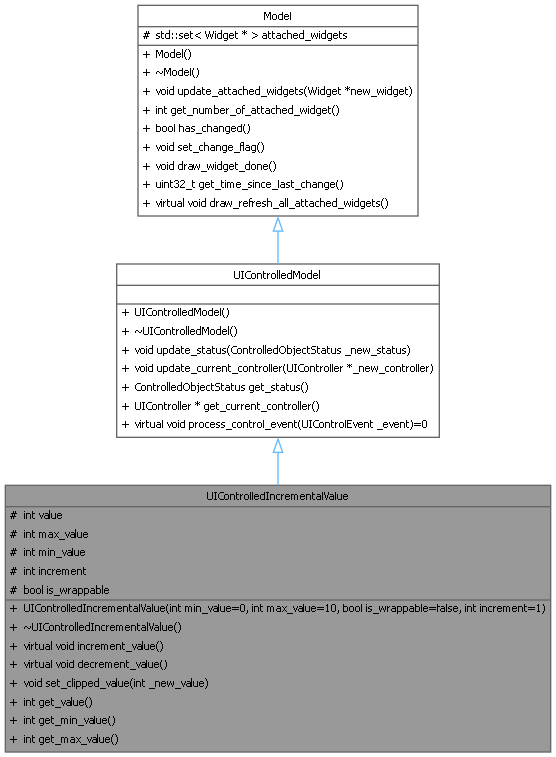

Inheritance diagram for UIControlledIncrementalValue:

Collaboration diagram for UIControlledIncrementalValue:

Public Member Functions
	UIControlledIncrementalValue (int min_value=0, int max_value=10, bool is_wrappable=false, int increment=1)
	Construct a new UIControlledIncrementalValue object.
	~UIControlledIncrementalValue ()
	Destroy the UIControlledIncrementalValue object.
virtual bool	increment_value ()
	Add "increment" to the current value.
virtual bool	decrement_value ()
	Substract "increment" to the current value.
bool	set_clipped_value (int _new_value)
	Set value to _new_value, and clip the result to min or max value if needed.
int	get_value ()
	Get the value object.
int	get_min_value ()
	Get the min value object.
int	get_max_value ()
	Get the max value object.
Public Member Functions inherited from UIControlledModel
bool	update_status (ControlledObjectStatus _new_status)
	update the status of the model object.
void	update_current_controller (UIController *_new_controller)
	if _new_controller is different from the current controller, change the current controller associated to the Model. the new controller has is member current_controlled_model also changed.
ControlledObjectStatus	get_status ()
	Get the status object.
UIController *	get_current_controller ()
	Get the current controller object.
virtual void	process_control_event (struct_ControlEventData control_event)=0
	pure virtual function that process a control event
Public Member Functions inherited from Model
	Model ()
	Construct the Model object.
	~Model ()
	Destroy the Model object.
void	update_attached_widgets (Widget *new_widget)
	add a new widget to the set of attached_widgets
int	get_number_of_attached_widget ()
	get the number of attached widgets
bool	has_changed ()
	get the change flag status
void	set_change_flag ()
	Set the change flag object to true.
void	draw_widget_done ()
	Set the change flag object to false.
uint32_t	get_time_since_last_change ()
	compute time since the last status change
virtual void	draw_refresh_all_attached_widgets ()
	update drawing for each attached widgets

Protected Attributes
int	value
	The internal value incremented or decremented by action on the controller.
int	max_value
	The maximum value that can be reached. Can be either negative or positive.
int	min_value
	The minimum value that can be reached. Can be either negative or positive.
int	increment
	The number that is added or substracted to the current value. Default to 1.
bool	is_wrappable
	If true, once the max (resp. min) value is reached, the next one wraps to min (resp*; max) value. If false values are clipped on min and max values.
Protected Attributes inherited from Model
std::set< Widget * >	attached_widgets
	the set of widgets that are in charge of viewing this model.

Detailed Description

The UIControlledIncrementalValue is a kind of Model that have special feature such as a value that can be incremented or decremented. This value runs between a min_value and a max_value.

The increment value is configurable. A is_wrappable flag indicates how the value behaves once min or max values are reached.

Constructor & Destructor Documentation

UIControlledIncrementalValue()

UIControlledIncrementalValue::UIControlledIncrementalValue	(	int	min_value = 0,
		int	max_value = 10,
		bool	is_wrappable = false,
		int	increment = 1 )

Construct a new UIControlledIncrementalValue object.

Parameters

min_value	The minimum value that can be reached. Can be either negative or positive.
max_value	The maximum value that can be reached. Can be either negative or positive.
is_wrappable	If true, once the max (resp. min) value is reached, the next one wraps to min (resp*; max) value. If false values are clipped on min and max values.
increment	The number that is added or substracted to the current value. Default to 1.

Here is the caller graph for this function:

Member Function Documentation

decrement_value()

bool UIControlledIncrementalValue::decrement_value ( )

virtual

Substract "increment" to the current value.

Returns

true if the value was changed

Here is the call graph for this function:

Here is the caller graph for this function:

get_max_value()

int UIControlledIncrementalValue::get_max_value

(

)

Get the max value object.

Returns

int

get_min_value()

int UIControlledIncrementalValue::get_min_value

(

)

Get the min value object.

Returns

int

get_value()

int UIControlledIncrementalValue::get_value

(

)

Get the value object.

Returns

int

increment_value()

bool UIControlledIncrementalValue::increment_value ( )

virtual

Add "increment" to the current value.

Returns

true if the value was changed

Here is the call graph for this function:

Here is the caller graph for this function:

set_clipped_value()

bool UIControlledIncrementalValue::set_clipped_value

(

int

_new_value

)

Set value to _new_value, and clip the result to min or max value if needed.

Parameters

_new_value

Returns

true if the value was changed

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ui_core.h
• ui_core.cpp
