ui_core.h File Reference

#include "pico/stdlib.h"
#include "sw/ui_core/ui_control_event.h"
#include "sw/display_device/display_device.h"
#include "sw/widget/widget.h"
#include <vector>
#include <map>
#include <string>
#include <set>

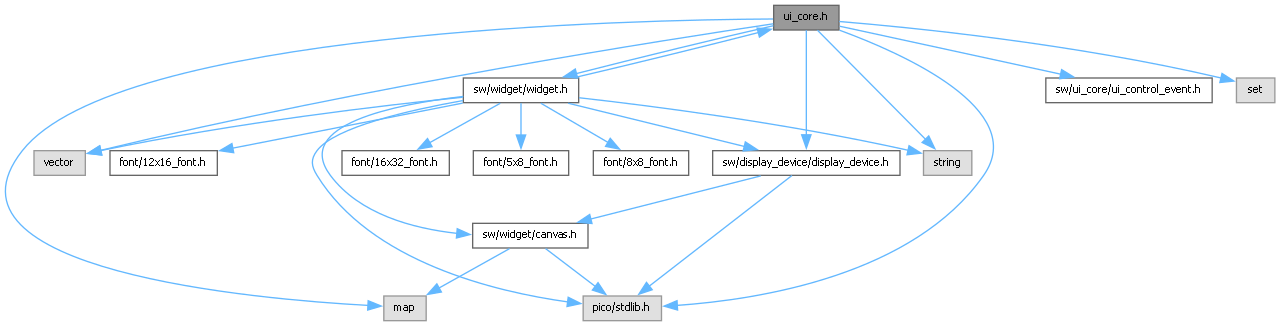

Include dependency graph for ui_core.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Model
	This is the Model abstract class of Model_View_Control design pattern. More...
class	UIControlledModel
	Class that adds UI Controller to the basic Model class. More...
class	UIControlledIncrementalValue
	The UIControlledIncrementalValue is a kind of Model that have special feature such as a value that can be incremented or decremented. This value runs between a min_value and a max_value. More...
class	UIModelManager
	This is an Abstract class that is used to implement the manager of object on a screen. More...
class	UIController
	UIController is the abstract class that hosts all controller object in the Model-View-Controll design pattern. More...

Macros
#define	UI_MODEL_OBJECT_STATUS_TIME_OUT_us   3000000
	the time out used by the UIModelManager that indicates there is no more UI_ModelObject Status change.

Enumerations
enum class	ControlledObjectStatus { IS_WAITING , HAS_FOCUS , IS_ACTIVE }
	The list of status that a Model can have. (0) IS_WAITING (1) HAS_FOCUS (2) IS_ACTIVE. More...
enum class	ControlledObjectStatusTimeOutReason { NO_TIME_OUT , MANAGER_INACTIVE , MANAGED_OBJECT_INACTIVE }
	The list of reason of manager time out report. (0) NO_TIME_OUT (1) MANAGER_INACTIVE (3) MANAGED_OBJECT_INACTIVE. More...

Detailed Description

Author

xiansnn (xians.nosp@m.nn@h.nosp@m.otmai.nosp@m.l.co.nosp@m.m)

Version

0.1

Date

2025-01-11

Copyright

Copyright (c) 2025

Enumeration Type Documentation

ControlledObjectStatus

enum class ControlledObjectStatus

strong

The list of status that a Model can have. (0) IS_WAITING (1) HAS_FOCUS (2) IS_ACTIVE.

Enumerator
IS_WAITING	The object is inactive, nothing to do.
HAS_FOCUS	The widget or object manager is pointing to this model.
IS_ACTIVE	The user has selected (clicked) on this model. ControlEvent are then passed to this model in order to be processed.

ControlledObjectStatusTimeOutReason

enum class ControlledObjectStatusTimeOutReason

strong

The list of reason of manager time out report. (0) NO_TIME_OUT (1) MANAGER_INACTIVE (3) MANAGED_OBJECT_INACTIVE.

Enumerator
NO_TIME_OUT	no time out
MANAGER_INACTIVE	The object is inactive, nothing to do.
MANAGED_OBJECT_INACTIVE	The widget or object manager is pointing to this model.
