UIModelManager Class Reference

This is an Abstract class that is used to implement the manager of object on a screen. More...

#include <ui_core.h>

Inheritance diagram for UIModelManager:

Collaboration diagram for UIModelManager:

Public Member Functions
	UIModelManager (bool is_wrappable=false)
	Construct a new UIModelManager object.
	~UIModelManager ()
	Destroy the UIModelManager object.
void	add_managed_model (UIControlledModel *_new_model)
	add a new Model to the list of managed objects.
Public Member Functions inherited from UIControlledIncrementalValue
	UIControlledIncrementalValue (int min_value=0, int max_value=10, bool is_wrappable=false, int increment=1)
	Construct a new UIControlledIncrementalValue object.
	~UIControlledIncrementalValue ()
	Destroy the UIControlledIncrementalValue object.
virtual void	increment_value ()
	Add "increment" to the current value.
virtual void	decrement_value ()
	Substract "increment" to the current value.
void	set_clipped_value (int _new_value)
	Set value to _new_value, and clip the result to min or max value if needed.
int	get_value ()
	Get the value object.
int	get_min_value ()
	Get the min value object.
int	get_max_value ()
	Get the max value object.
Public Member Functions inherited from UIControlledModel
void	update_status (ControlledObjectStatus _new_status)
	check if the _new_status change is effective, then change it and set the change_flag to true.
void	update_current_controller (UIController *_new_controller)
	if _new_controller is different from the current controller, change the current controller associated to the Model. the new controller has is member current_controlled_model also changed.
ControlledObjectStatus	get_status ()
	Get the status object.
UIController *	get_current_controller ()
	Get the current controller object.
virtual void	process_control_event (UIControlEvent _event)=0
	The purpose of this function is to implement the behavior of the implemented model object when a ControlEvent is received.
Public Member Functions inherited from Model
	Model ()
	Construct the Model object.
	~Model ()
	Destroy the Model object.
void	update_attached_widgets (Widget *new_widget)
	add a new widget to the set of attached_widgets
int	get_number_of_attached_widget ()
	get the number of attached widgets
bool	has_changed ()
	get the change flag status
void	set_change_flag ()
	Set the change flag object to true.
void	draw_widget_done ()
	Set the change flag object to false.
uint32_t	get_time_since_last_change ()
	compute time since the last status change
virtual void	draw_refresh_all_attached_widgets ()
	update drawing for each attached widgets

Protected Member Functions
ControlledObjectStatusTimeOutReason	check_time_out (uint32_t managed_object_status_time_out_us=3000000)
	check if there is a time out either on the managed models or the manager itself.
void	make_managed_model_active ()
	change the status of model object under focus to IS_ACTIVE
void	make_manager_active ()
	leave the current managed object and return control to the manager
virtual void	increment_focus ()
	set focus on the next model in the list.
virtual void	decrement_focus ()
	set focus on the previous model in the list.

Protected Attributes
std::vector< UIControlledModel * >	managed_models
	The list of managed objects.
UIControlledModel *	current_active_model
	the reference to the current active model object
Protected Attributes inherited from UIControlledIncrementalValue
int	value
	The internal value incremented or decremented by action on the controller.
int	max_value
	The maximum value that can be reached. Can be either negative or positive.
int	min_value
	The minimum value that can be reached. Can be either negative or positive.
int	increment
	The number that is added or substracted to the current value. Default to 1.
bool	is_wrappable
	If true, once the max (resp. min) value is reached, the next one wraps to min (resp*; max) value. If false values are clipped on min and max values.
Protected Attributes inherited from Model
std::set< Widget * >	attached_widgets
	the set of widgets that are in charge of viewing this model.

Detailed Description

This is an Abstract class that is used to implement the manager of object on a screen.

An UIModelManager is built from :

• Model : It inherits of the status and is controlled by a UIController.
• UIControlledIncrementalValue : It is associated with a value that represents the current managed Model under focus or active.

Constructor & Destructor Documentation

UIModelManager()

UIModelManager::UIModelManager

(

bool

is_wrappable = false

)

Construct a new UIModelManager object.

Parameters

is_wrappable

if true, the scan over managed object wrap.

Here is the call graph for this function:

Member Function Documentation

add_managed_model()

void UIModelManager::add_managed_model

(

UIControlledModel *

_new_model

)

add a new Model to the list of managed objects.

Parameters

_new_model

check_time_out()

ControlledObjectStatusTimeOutReason UIModelManager::check_time_out ( uint32_t managed_object_status_time_out_us = 3000000 )

protected

check if there is a time out either on the managed models or the manager itself.

This means no action on focus control and active status control.

NOTICE: this is usefull when controller use IRQ, because we cannot detect no action when no more IRQ are triggered (up to now)

Parameters

managed_object_status_time_out_us

the time out value in microsecond. default to 3000000 (3seconds)

Returns

ControlledObjectStatusTimeOutReason

• chek time_out for active model

• check time_out for model under focus

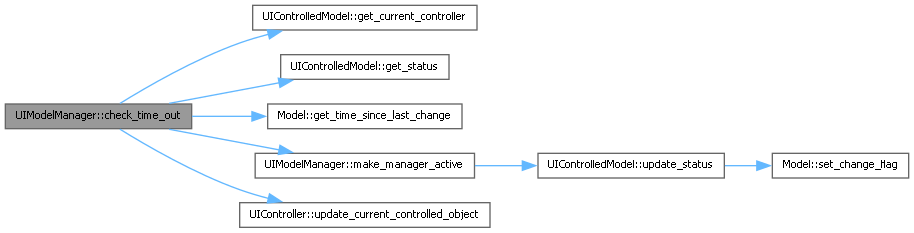

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ui_core.h
• ui_core.cpp
