#include "pico/stdlib.h"
#include "commands_ST7735.h"
#include "hw/spi/hw_spi.h"
#include "sw/display_device/display_device.h"

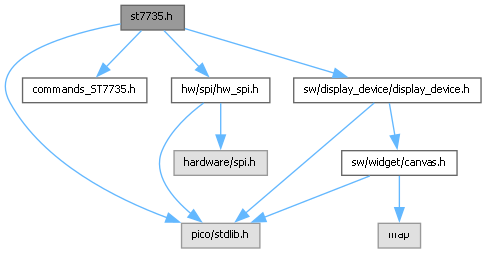

Include dependency graph for st7735.h:

Classes
struct	struct_ConfigST7735
	data used to configure the display device More...

struct	struct_ConfigScrollST7735

class	ST7735
	ST7735 driven TFT color display device. More...

Macros
#define	DCX_COMMAND 0
	level defined as command on the data/Command wire

#define	DCX_DATA 1
	level defined as data on the data/Command wire

#define	ST7735_144_128x128_column_offset 2
	hardware column offset between the TFT panel and the IC ST7735

#define	ST7735_144_128x128_row_offset_0_90 1
	hardware row offset between the TFT panel and the IC ST7735 for rotation = 0°, 90°

#define	ST7735_144_128x128_row_offset_180_270 3
	hardware row offset between the TFT panel and the IC ST7735 for rotation = 180°, 270°

#define	ST7735_177_160x128_column_offset 0
	hardware column offset between the TFT panel and the IC ST7735

#define	ST7735_177_160x128_row_offset 0
	hardware row offset between the TFT panel and the IC ST7735

Enumerations
enum class	ST7735DisplayType { ST7735_144_128_RGB_128_GREENTAB , ST7735_177_160_RGB_128_GREENTAB }
	tag used to ru the correct init code More...

enum class	ST7735Rotation { _0 , _90 , _180 , _270 }
	code indicates rotation of the display (Portrait, paysage, upside-down) More...

Detailed Description

Enumeration Type Documentation

strong

tag used to ru the correct init code

Enumerator
ST7735_144_128_RGB_128_GREENTAB	LCD TFT 1"44 128(RGB)x128 green_tab configuration.
ST7735_177_160_RGB_128_GREENTAB	LCD TFT 1"77 160(RGB)x128 green_tab configuration.

strong

code indicates rotation of the display (Portrait, paysage, upside-down)
