A class that implements basic graphic drawing primitives for widgets. More...

#include <widget_primitives.h>

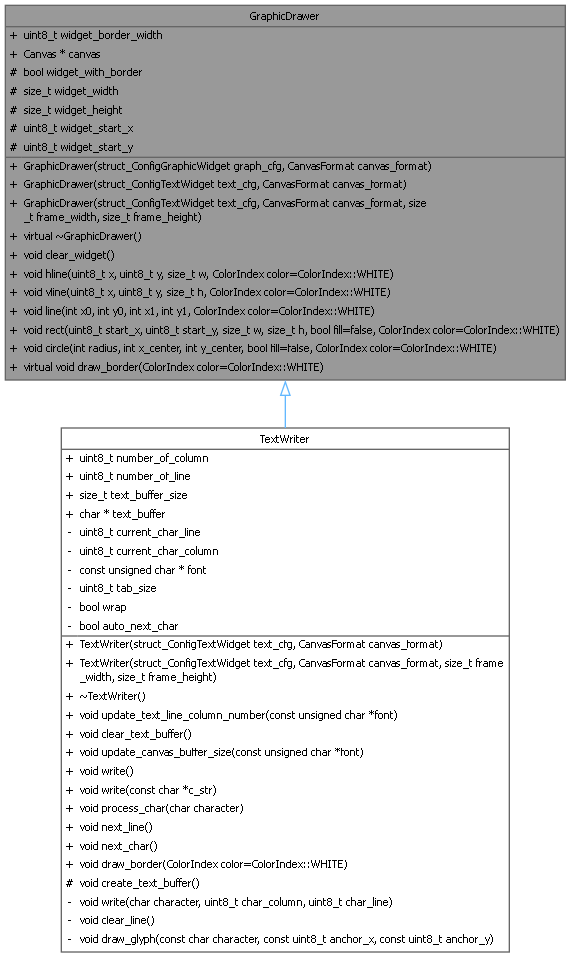

Inheritance diagram for GraphicDrawer:

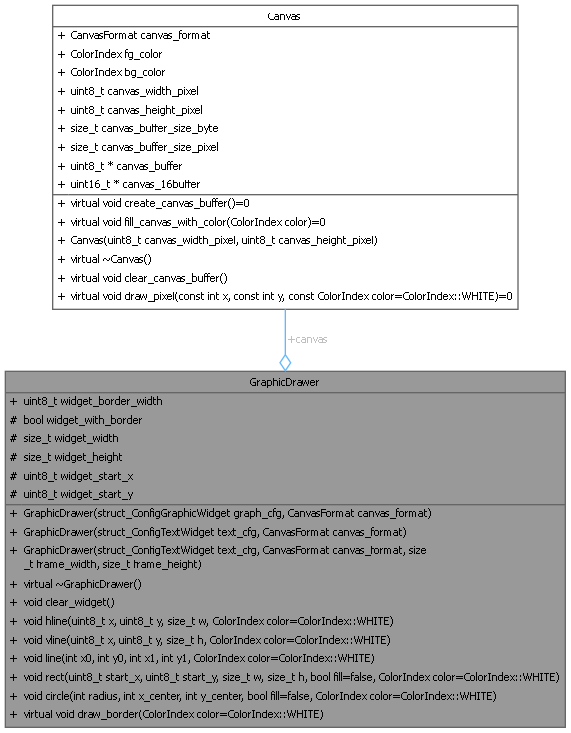

Collaboration diagram for GraphicDrawer:

Public Member Functions
	GraphicDrawer (struct_ConfigGraphicWidget graph_cfg, CanvasFormat canvas_format)
	Constructor of the GraphicDrawer class.

	GraphicDrawer (struct_ConfigTextWidget text_cfg, CanvasFormat canvas_format)
	Constructor of the GraphicDrawer class.

	GraphicDrawer (struct_ConfigTextWidget text_cfg, CanvasFormat canvas_format, size_t frame_width, size_t frame_height)
	Constructor of the GraphicDrawer class.

void	clear_widget ()
	fill the graphic pixel buffer with 0x00.

void	hline (uint8_t x, uint8_t y, size_t w, ColorIndex color=ColorIndex::WHITE)
	Draw a color horizontal line, starting at frame position (x,y), on w number of pixel.

void	vline (uint8_t x, uint8_t y, size_t h, ColorIndex color=ColorIndex::WHITE)
	Draw a color vertical line, starting at frame position (x,y), on w number of pixel.

void	line (int x0, int y0, int x1, int y1, ColorIndex color=ColorIndex::WHITE)
	Draw a color line, starting at frame position (x0,y0), ending at frame position (x1,y1)

void	rect (uint8_t start_x, uint8_t start_y, size_t w, size_t h, bool fill=false, ColorIndex color=ColorIndex::WHITE)
	Draw a rectangle, starting at frame position (x,y), w wide and h high.

void	circle (int radius, int x_center, int y_center, bool fill=false, ColorIndex color=ColorIndex::WHITE)
	draw a cercle of size radius, centered at (x_center, y_center) https://fr.wikipedia.org/wiki/Algorithme_de_trac%C3%A9_d%27arc_de_cercle_de_Bresenham https://en.wikipedia.org/wiki/Midpoint_circle_algorithm procédure tracerCercle (entier rayon, entier x_centre, entier y_centre) déclarer entier x, y, m ; x ← 0 ; y ← rayon ; // on se place en haut du cercle m ← 5 - 4rayon ; // initialisation Tant que x <= y // tant qu'on est dans le second octant tracerPixel( x+x_centre, y+y_centre ) ; tracerPixel( y+x_centre, x+y_centre ) ; tracerPixel( -x+x_centre, y+y_centre ) ; tracerPixel( -y+x_centre, x+y_centre ) ; tracerPixel( x+x_centre, -y+y_centre ) ; tracerPixel( y+x_centre, -x+y_centre ) ; tracerPixel( -x+x_centre, -y+y_centre ) ; tracerPixel( -y+x_centre, -x+y_centre ) ; si m > 0 alors //choix du point F y ← y - 1 ; m ← m - 8y ; fin si ; x ← x + 1 ; m ← m + 8*x + 4 ; fin tant que ; fin de procédure ;

virtual void	draw_border (ColorIndex color=ColorIndex::WHITE)
	draw a rectangle around the widget.

Public Attributes
uint8_t	widget_border_width
	this is the border size of the widget. 0 if no border, 1 if border

Canvas *	canvas
	the associated canvas in which the widget writes text and draws graphics

Protected Attributes
bool	widget_with_border {false}
	if true, the widget is surrounded by a one-pixel border

size_t	widget_width {128}
	As a widget can be surrounded by a border, the actual widget width is not the associated framebuffer width.

size_t	widget_height {8}
	As a widget can be surrounded by a border, the actual widget height is not the associated framebuffer height.

uint8_t	widget_start_x
	this is the actual horizontal start of the widget drawing area, taken into account the presence of border.

uint8_t	widget_start_y
	this is the actual vertical start of the widget drawing area, taken into account the presence of border.

Detailed Description

A class that implements basic graphic drawing primitives for widgets.

Constructor & Destructor Documentation

◆ GraphicDrawer() [1/3]

GraphicDrawer::GraphicDrawer	(	struct_ConfigGraphicWidget	graph_cfg,
		CanvasFormat	canvas_format )

Constructor of the GraphicDrawer class.

Parameters

graph_cfg	the configuration data for the graphical frame
canvas_format	the format of the associated canvas (see CanvasFormat)

Here is the caller graph for this function:

◆ GraphicDrawer() [2/3]

GraphicDrawer::GraphicDrawer	(	struct_ConfigTextWidget	text_cfg,
		CanvasFormat	canvas_format )

Constructor of the GraphicDrawer class.

Parameters

text_cfg	the configuration data for the textual frame
canvas_format	the format of the associated canvas (see CanvasFormat)

◆ GraphicDrawer() [3/3]

GraphicDrawer::GraphicDrawer	(	struct_ConfigTextWidget	text_cfg,
		CanvasFormat	canvas_format,
		size_t	frame_width,
		size_t	frame_height )

Constructor of the GraphicDrawer class.

Parameters

text_cfg	the configuration data for the textual frame
canvas_format	the format of the associated canvas (see CanvasFormat)
frame_width	the frame width in pixel
frame_height	the frame height in pixel

Member Function Documentation

◆ circle()

void GraphicDrawer::circle	(	int	radius,
		int	x_center,
		int	y_center,
		bool	fill = false,
		ColorIndex	color = ColorIndex::WHITE )

draw a cercle of size radius, centered at (x_center, y_center) https://fr.wikipedia.org/wiki/Algorithme_de_trac%C3%A9_d%27arc_de_cercle_de_Bresenham https://en.wikipedia.org/wiki/Midpoint_circle_algorithm procédure tracerCercle (entier rayon, entier x_centre, entier y_centre) déclarer entier x, y, m ; x ← 0 ; y ← rayon ; // on se place en haut du cercle m ← 5 - 4*rayon ; // initialisation Tant que x <= y // tant qu'on est dans le second octant tracerPixel( x+x_centre, y+y_centre ) ; tracerPixel( y+x_centre, x+y_centre ) ; tracerPixel( -x+x_centre, y+y_centre ) ; tracerPixel( -y+x_centre, x+y_centre ) ; tracerPixel( x+x_centre, -y+y_centre ) ; tracerPixel( y+x_centre, -x+y_centre ) ; tracerPixel( -x+x_centre, -y+y_centre ) ; tracerPixel( -y+x_centre, -x+y_centre ) ; si m > 0 alors //choix du point F y ← y - 1 ; m ← m - 8*y ; fin si ; x ← x + 1 ; m ← m + 8*x + 4 ; fin tant que ; fin de procédure ;

Parameters

radius	radius, in pixel, of the circle
x_center	horizontal position of the center of the cercle
y_center	vertical position of the center on the cercle
fill	if true, the circle is filled with color c
color	color of the border of the circle, default to WHITE

Here is the call graph for this function:

◆ clear_widget()

void GraphicDrawer::clear_widget ( )

fill the graphic pixel buffer with 0x00.

Note: USAGE: used at the begining of the draw() method.

◆ draw_border()

void GraphicDrawer::draw_border ( ColorIndex color = ColorIndex::WHITE )

virtual

draw a rectangle around the widget.

Note: As the border is a rectangle with fill=false, the border width can only be 1 pixel.

Parameters

color the color of the border

Reimplemented in TextWriter.

Here is the call graph for this function:

◆ hline()

void GraphicDrawer::hline	(	uint8_t	x,
		uint8_t	y,
		size_t	w,
		ColorIndex	color = ColorIndex::WHITE )

Draw a color horizontal line, starting at frame position (x,y), on w number of pixel.

Parameters

x	horizontal start of line
y	vertical start of line
w	length of the line in number of pixel
color	color of the line, default to WHITE

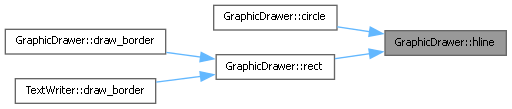

Here is the caller graph for this function:

◆ line()

void GraphicDrawer::line	(	int	x0,
		int	y0,
		int	x1,
		int	y1,
		ColorIndex	color = ColorIndex::WHITE )

Draw a color line, starting at frame position (x0,y0), ending at frame position (x1,y1)

Parameters

x0	horizontal start of line
y0	vertical start of line
x1	horizontal end of line
y1	vertical end of line
color	color of the line, default to WHITE

◆ rect()

void GraphicDrawer::rect	(	uint8_t	start_x,
		uint8_t	start_y,
		size_t	w,
		size_t	h,
		bool	fill = false,
		ColorIndex	color = ColorIndex::WHITE )

Draw a rectangle, starting at frame position (x,y), w wide and h high.

Parameters

start_x	horizontal start of the rectangle
start_y	vertical start of the rectangle
w	number of pixel of the rectangle width
h	number of pixel of the rectangle height
fill	if true, the rectangle is filled with color
color	color of the border of the rectangle, default to WHITE

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vline()

void GraphicDrawer::vline	(	uint8_t	x,
		uint8_t	y,
		size_t	h,
		ColorIndex	color = ColorIndex::WHITE )

Draw a color vertical line, starting at frame position (x,y), on w number of pixel.

Parameters

x	horizontal start of line
y	vertical start of line
h	length of the line in number of pixel
color	color of the line, default to WHITE

Here is the caller graph for this function:

Member Data Documentation

◆ widget_start_x

uint8_t GraphicDrawer::widget_start_x

protected

this is the actual horizontal start of the widget drawing area, taken into account the presence of border.

Note: WARNING: when the FramebufferFormat format is MONO_VLSB, works fine only if widget_height is a multiple of 8.

◆ widget_start_y

uint8_t GraphicDrawer::widget_start_y

protected

this is the actual vertical start of the widget drawing area, taken into account the presence of border.

Note: when the FramebufferFormat format is MONO_VLSB, works fine only if widget_start_y is a multiple of 8

The documentation for this class was generated from the following files:

widget_primitives.h
widget_primitives.cpp
