Inheritance diagram for ModelBargraph:

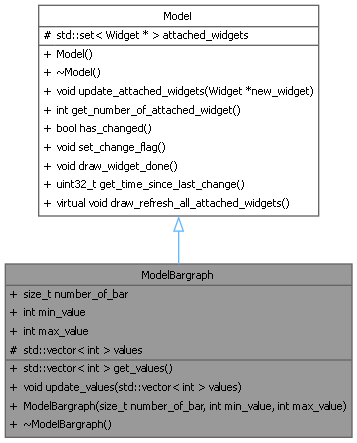

Collaboration diagram for ModelBargraph:

Public Member Functions
std::vector< int >	get_values ()
	get internal values of the bargraph model

void	update_values (std::vector< int > values)
	update internal values of the bargraph and set_change_flag

	ModelBargraph (size_t number_of_bar, int min_value, int max_value)
	conctructor of ModelBargraph

	~ModelBargraph ()
	Destroy the Model Bargraph object.

Public Member Functions inherited from Model
	Model ()
	Construct the Model object.

	~Model ()
	Destroy the Model object.

void	update_attached_widgets (Widget *new_widget)
	add a new widget to the set of attached_widgets

int	get_number_of_attached_widget ()
	get the number of attached widgets

bool	has_changed ()
	get the change flag status

void	set_change_flag ()
	Set the change flag object to true.

void	draw_widget_done ()
	Set the change flag object to false.

uint32_t	get_time_since_last_change ()
	compute time since the last status change

virtual void	draw_refresh_all_attached_widgets ()
	update drawing for each attached widgets

Public Attributes
size_t	number_of_bar
	the number of bar in the bargraph (and the number of values)

int	min_value
	the min value of the range of values

int	max_value
	the max value of the range of values

Protected Attributes
std::vector< int >	values
	the vector of values displayed by the bargraph

Protected Attributes inherited from Model
std::set< Widget * >	attached_widgets
	the set of widgets that are in charge of viewing this model.

Detailed Description

the Model used by Bargraph GraphicWidget

Constructor & Destructor Documentation

ModelBargraph::ModelBargraph	(	size_t	number_of_bar,
		int	min_value,
		int	max_value )

conctructor of ModelBargraph

Parameters

number_of_bar	the number of bar in the bargraph
min_value	the min value of the range of values
max_value	the max value of the range of values

Here is the call graph for this function:

std::vector< int > ModelBargraph::get_values ( )

get internal values of the bargraph model

void ModelBargraph::update_values ( std::vector< int > values )

update internal values of the bargraph and set_change_flag

Parameters

values

Here is the call graph for this function:

The documentation for this class was generated from the following files:
