GraphicWidget Class Reference

The graphical version of a Widget. More...

#include <widget.h>

Inheritance diagram for GraphicWidget:

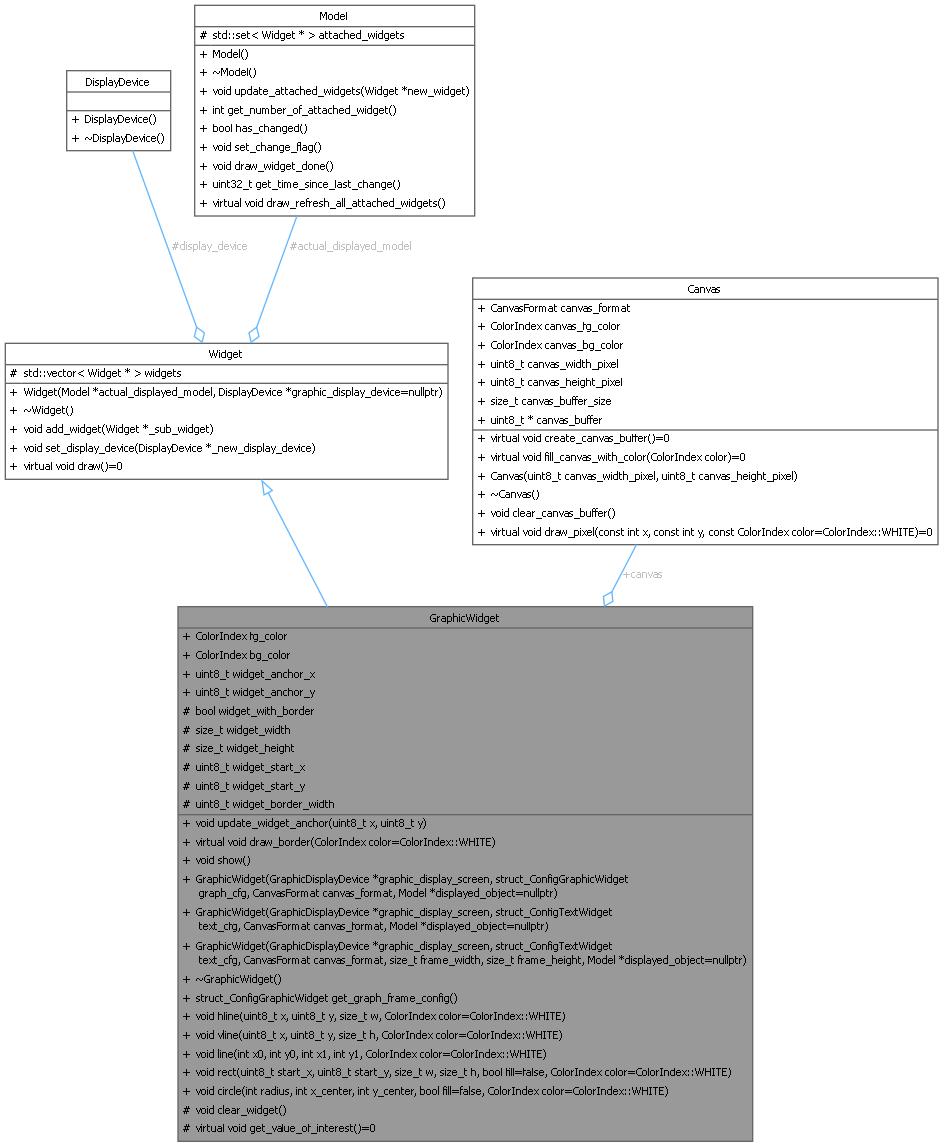

Collaboration diagram for GraphicWidget:

Public Member Functions
void	update_widget_anchor (uint8_t x, uint8_t y)
	Modify the anchor of the widget on the display screen.
virtual void	draw_border (ColorIndex color=ColorIndex::WHITE)
	draw a rectangle around the widget.
void	show ()
	A short way to call GraphicDisplayDevice::show(&canvas, anchor x, anchor y)
	GraphicWidget (GraphicDisplayDevice *graphic_display_screen, struct_ConfigGraphicWidget graph_cfg, CanvasFormat canvas_format, Model *displayed_object=nullptr)
	Construct a new Graphic Widget object.
	GraphicWidget (GraphicDisplayDevice *graphic_display_screen, struct_ConfigTextWidget text_cfg, CanvasFormat canvas_format, Model *displayed_object=nullptr)
	Construct a new Graphic Widget object from the TextWidget Constructor.
	GraphicWidget (GraphicDisplayDevice *graphic_display_screen, struct_ConfigTextWidget text_cfg, CanvasFormat canvas_format, size_t frame_width, size_t frame_height, Model *displayed_object=nullptr)
	Construct a new Graphic Widget object from the TextWidget Constructor.
	~GraphicWidget ()
	Destroy the Widget object.
struct_ConfigGraphicWidget	get_graph_frame_config ()
	Get the graphic frame config object.
void	hline (uint8_t x, uint8_t y, size_t w, ColorIndex color=ColorIndex::WHITE)
	Draw a color horizontal line, starting at frame position (x,y), on w number of pixel.
void	vline (uint8_t x, uint8_t y, size_t h, ColorIndex color=ColorIndex::WHITE)
	Draw a color vertical line, starting at frame position (x,y), on w number of pixel.
void	line (int x0, int y0, int x1, int y1, ColorIndex color=ColorIndex::WHITE)
	Draw a color line, starting at frame position (x0,y0), ending at frame position (x1,y1)
void	rect (uint8_t start_x, uint8_t start_y, size_t w, size_t h, bool fill=false, ColorIndex color=ColorIndex::WHITE)
	Draw a rectangle, starting at frame position (x,y), w wide and h high.
void	circle (int radius, int x_center, int y_center, bool fill=false, ColorIndex color=ColorIndex::WHITE)
	draw a cercle of size radius, centered at (x_center, y_center) https://fr.wikipedia.org/wiki/Algorithme_de_trac%C3%A9_d%27arc_de_cercle_de_Bresenham https://en.wikipedia.org/wiki/Midpoint_circle_algorithm procédure tracerCercle (entier rayon, entier x_centre, entier y_centre) déclarer entier x, y, m ; x ← 0 ; y ← rayon ; // on se place en haut du cercle m ← 5 - 4*rayon ; // initialisation Tant que x <= y // tant qu'on est dans le second octant tracerPixel( x+x_centre, y+y_centre ) ; tracerPixel( y+x_centre, x+y_centre ) ; tracerPixel( -x+x_centre, y+y_centre ) ; tracerPixel( -y+x_centre, x+y_centre ) ; tracerPixel( x+x_centre, -y+y_centre ) ; tracerPixel( y+x_centre, -x+y_centre ) ; tracerPixel( -x+x_centre, -y+y_centre ) ; tracerPixel( -y+x_centre, -x+y_centre ) ; si m > 0 alors //choix du point F y ← y - 1 ; m ← m - 8*y ; fin si ; x ← x + 1 ; m ← m + 8*x + 4 ; fin tant que ; fin de procédure ;
Public Member Functions inherited from Widget
	Widget (Model *actual_displayed_model, DisplayDevice *graphic_display_device=nullptr)
	contructor for generic widget
void	add_widget (Widget *_sub_widget)
	add sub_widget to the current widget
void	set_display_device (DisplayDevice *_new_display_device)
	Set the display screen object.
virtual void	draw ()=0
	a pure virtual member that is called to effectively draw the widget.

Public Attributes
Canvas *	canvas
	the associated canvas in which the widget writes text and draws graphics
ColorIndex	fg_color
	the foregroung color of the graphic frame //TODO voir si fg_color n'est pas mieux dans canvas
ColorIndex	bg_color
	the background color of the graphic frame //TODO voir si bg_color n'est pas mieux dans canvas
uint8_t	widget_anchor_x
	location in x of the widget within the hosting framebuffer
uint8_t	widget_anchor_y
	location in y of the widget within the hosting framebuffer

Protected Member Functions
void	clear_widget ()
	fill the graphic pixel buffer with 0x00.
virtual void	get_value_of_interest ()=0
	A pure virtual method that results in the transfer of the displayed values of the displayed model to the widget.

Protected Attributes
bool	widget_with_border {false}
	if true, the widget is surrounded by a one-pixel border
size_t	widget_width {128}
	As a widget can be surrounded by a border, the actual widget width is not the associated framebuffer width.
size_t	widget_height {8}
	As a widget can be surrounded by a border, the actual widget height is not the associated framebuffer height.
uint8_t	widget_start_x
	this is the actual horizontal start of the widget drawing area, taken into account the presence of border.
uint8_t	widget_start_y
	this is the actual vertical start of the widget drawing area, taken into account the presence of border.
uint8_t	widget_border_width
	this is the border size of the widget. 0 if no border, 1 if border
Protected Attributes inherited from Widget
DisplayDevice *	display_device {nullptr}
	the display device where the attached to the frame buffer
Model *	actual_displayed_model {nullptr}
	a pointer to the Model actually displayed by the widget
std::vector< Widget * >	widgets
	A widget can be composed by several widgets.

Detailed Description

The graphical version of a Widget.

Constructor & Destructor Documentation

GraphicWidget() [1/3]

GraphicWidget::GraphicWidget	(	GraphicDisplayDevice *	graphic_display_screen,
		struct_ConfigGraphicWidget	graph_cfg,
		CanvasFormat	canvas_format,
		Model *	displayed_object = nullptr )

Construct a new Graphic Widget object.

Note

USAGE: when we need a pure graphic widget defined by the struct_ConfigGraphicFramebuffer

Parameters

graphic_display_screen	The display device on which the widget is drawn.
graph_cfg	the configuration data structure of the graphic framebuffer
canvas_format	the format of the associated canvas (see CanvasFormat)
displayed_object	the displayed object of the widget

Here is the call graph for this function:

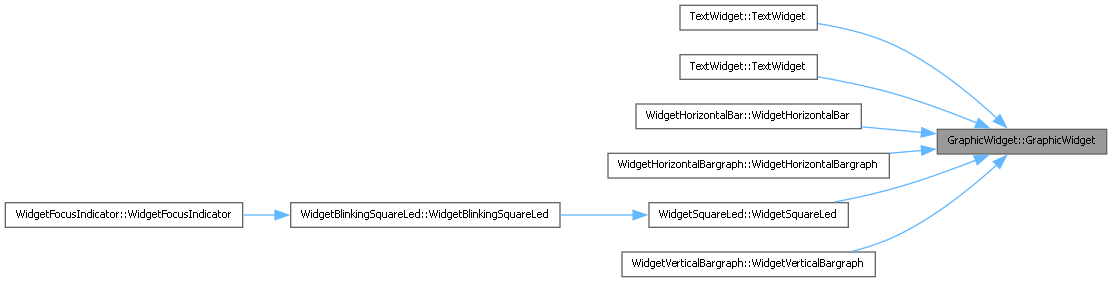

Here is the caller graph for this function:

GraphicWidget() [2/3]

GraphicWidget::GraphicWidget	(	GraphicDisplayDevice *	graphic_display_screen,
		struct_ConfigTextWidget	text_cfg,
		CanvasFormat	canvas_format,
		Model *	displayed_object = nullptr )

Construct a new Graphic Widget object from the TextWidget Constructor.

Note

USAGE: When we need a textual framebuffer defined by the struct_ConfigTextWidget

Parameters

graphic_display_screen	The display device on which the widget is drawn.
text_cfg	the configuration data structure of the text framebuffer
canvas_format	the format of the associated canvas (see CanvasFormat)
displayed_object	the displayed object of the widget

Here is the call graph for this function:

GraphicWidget() [3/3]

GraphicWidget::GraphicWidget	(	GraphicDisplayDevice *	graphic_display_screen,
		struct_ConfigTextWidget	text_cfg,
		CanvasFormat	canvas_format,
		size_t	frame_width,
		size_t	frame_height,
		Model *	displayed_object = nullptr )

Construct a new Graphic Widget object from the TextWidget Constructor.

Note

When we need a textual framebuffer defined by the pixel size frame_width, frame_height. The number of column and line are computed with regard to the size of the font

Parameters

graphic_display_screen
text_cfg	the configuration data structure of the text framebuffer
canvas_format	the format of the associated canvas (see CanvasFormat)
frame_width	the frame width in pixel
frame_height	the frame height in pixel
displayed_object	the displayed object of the widget

Here is the call graph for this function:

Member Function Documentation

circle()

void GraphicWidget::circle	(	int	radius,
		int	x_center,
		int	y_center,
		bool	fill = false,
		ColorIndex	color = ColorIndex::WHITE )

draw a cercle of size radius, centered at (x_center, y_center) https://fr.wikipedia.org/wiki/Algorithme_de_trac%C3%A9_d%27arc_de_cercle_de_Bresenham https://en.wikipedia.org/wiki/Midpoint_circle_algorithm procédure tracerCercle (entier rayon, entier x_centre, entier y_centre) déclarer entier x, y, m ; x ← 0 ; y ← rayon ; // on se place en haut du cercle m ← 5 - 4*rayon ; // initialisation Tant que x <= y // tant qu'on est dans le second octant tracerPixel( x+x_centre, y+y_centre ) ; tracerPixel( y+x_centre, x+y_centre ) ; tracerPixel( -x+x_centre, y+y_centre ) ; tracerPixel( -y+x_centre, x+y_centre ) ; tracerPixel( x+x_centre, -y+y_centre ) ; tracerPixel( y+x_centre, -x+y_centre ) ; tracerPixel( -x+x_centre, -y+y_centre ) ; tracerPixel( -y+x_centre, -x+y_centre ) ; si m > 0 alors //choix du point F y ← y - 1 ; m ← m - 8*y ; fin si ; x ← x + 1 ; m ← m + 8*x + 4 ; fin tant que ; fin de procédure ;

Parameters

radius	radius, in pixel, of the circle
x_center	horizontal position of the center of the cercle
y_center	vertical position of the center on the cercle
fill	if true, the circle is filled with color c
color	color of the border of the circle, default to WHITE

Here is the call graph for this function:

clear_widget()

void GraphicWidget::clear_widget ( )

protected

fill the graphic pixel buffer with 0x00.

Note

USAGE: used at the begining of the draw() method.

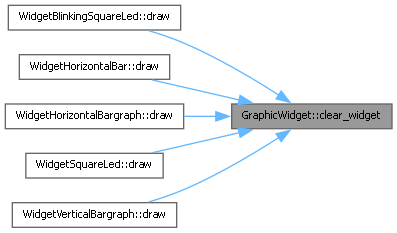

Here is the caller graph for this function:

draw_border()

void GraphicWidget::draw_border ( ColorIndex color = ColorIndex::WHITE )

virtual

draw a rectangle around the widget.

Note

As the border is a rectangle with fill=false, the border width can only be 1 pixel.

Parameters

color

the color of the border

Reimplemented in TextWidget.

Here is the call graph for this function:

Here is the caller graph for this function:

get_graph_frame_config()

struct_ConfigGraphicWidget GraphicWidget::get_graph_frame_config

(

)

Get the graphic frame config object.

Returns

struct_ConfigGraphicFramebuffer

Here is the caller graph for this function:

get_value_of_interest()

virtual void GraphicWidget::get_value_of_interest ( )

protectedpure virtual

A pure virtual method that results in the transfer of the displayed values of the displayed model to the widget.

Implemented in WidgetFocusIndicator, WidgetHorizontalBargraph, and WidgetVerticalBargraph.

Here is the caller graph for this function:

hline()

void GraphicWidget::hline	(	uint8_t	x,
		uint8_t	y,
		size_t	w,
		ColorIndex	color = ColorIndex::WHITE )

Draw a color horizontal line, starting at frame position (x,y), on w number of pixel.

Parameters

x	horizontal start of line
y	vertical start of line
w	length of the line in number of pixel
color	color of the line, default to WHITE

Here is the caller graph for this function:

line()

void GraphicWidget::line	(	int	x0,
		int	y0,
		int	x1,
		int	y1,
		ColorIndex	color = ColorIndex::WHITE )

Draw a color line, starting at frame position (x0,y0), ending at frame position (x1,y1)

Parameters

x0	horizontal start of line
y0	vertical start of line
x1	horizontal end of line
y1	vertical end of line
color	color of the line, default to WHITE

rect()

void GraphicWidget::rect	(	uint8_t	start_x,
		uint8_t	start_y,
		size_t	w,
		size_t	h,
		bool	fill = false,
		ColorIndex	color = ColorIndex::WHITE )

Draw a rectangle, starting at frame position (x,y), w wide and h high.

Parameters

start_x	horizontal start of the rectangle
start_y	vertical start of the rectangle
w	number of pixel of the rectangle width
h	number of pixel of the rectangle height
fill	if true, the rectangle is filled with color
color	color of the border of the rectangle, default to WHITE

Here is the call graph for this function:

Here is the caller graph for this function:

update_widget_anchor()

void GraphicWidget::update_widget_anchor	(	uint8_t	x,
		uint8_t	y )

Modify the anchor of the widget on the display screen.

Parameters

x	anchor x coordinate
y	anchor y coordinate

vline()

void GraphicWidget::vline	(	uint8_t	x,
		uint8_t	y,
		size_t	h,
		ColorIndex	color = ColorIndex::WHITE )

Draw a color vertical line, starting at frame position (x,y), on w number of pixel.

Parameters

x	horizontal start of line
y	vertical start of line
h	length of the line in number of pixel
color	color of the line, default to WHITE

Here is the caller graph for this function:

Member Data Documentation

widget_start_x

uint8_t GraphicWidget::widget_start_x

protected

this is the actual horizontal start of the widget drawing area, taken into account the presence of border.

Note

WARNING: when the FramebufferFormat format is MONO_VLSB, works fine only if widget_height is a multiple of 8.

widget_start_y

uint8_t GraphicWidget::widget_start_y

protected

this is the actual vertical start of the widget drawing area, taken into account the presence of border.

Note

when the FramebufferFormat format is MONO_VLSB, works fine only if widget_start_y is a multiple of 8

---

The documentation for this class was generated from the following files:

• widget.h
• widget.cpp
