WidgetHorizontalBargraph Class Reference

the widget that display an horizontal bargraph More...

#include <widget_bargraph.h>

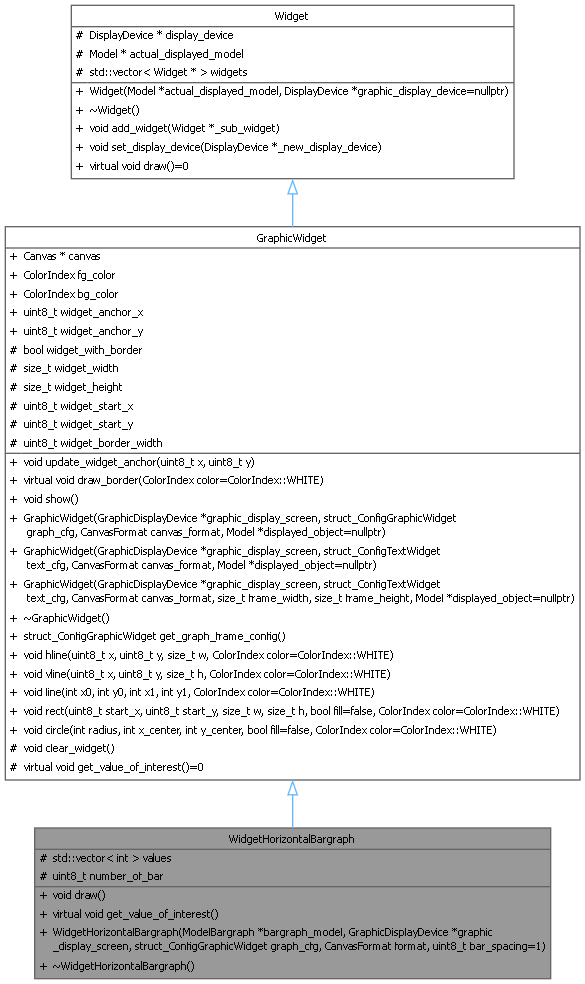

Inheritance diagram for WidgetHorizontalBargraph:

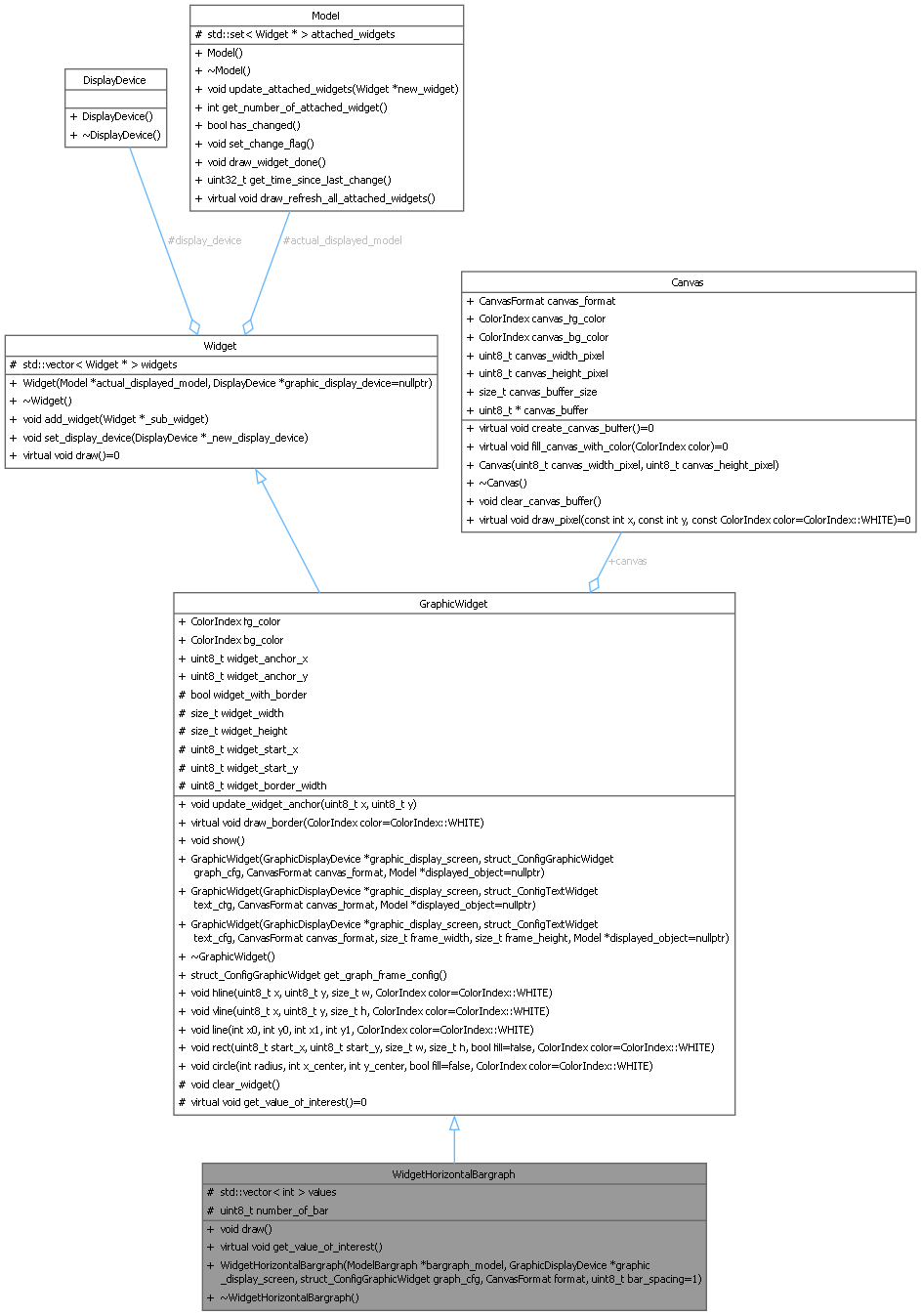

Collaboration diagram for WidgetHorizontalBargraph:

Public Member Functions
void	draw ()
	the function that draw the widget
virtual void	get_value_of_interest ()
	A pure virtual method that results in the transfer of the displayed values of the displayed model to the widget.
	WidgetHorizontalBargraph (ModelBargraph *bargraph_model, GraphicDisplayDevice *graphic_display_screen, struct_ConfigGraphicWidget graph_cfg, CanvasFormat format, uint8_t bar_spacing=1)
	Construct a new Widget Horizontal Bargraph object.
	~WidgetHorizontalBargraph ()
	Destroy the GraphicWidget Horizontal Bargraph object.
Public Member Functions inherited from GraphicWidget
void	update_widget_anchor (uint8_t x, uint8_t y)
	Modify the anchor of the widget on the display screen.
virtual void	draw_border (ColorIndex color=ColorIndex::WHITE)
	draw a rectangle around the widget.
void	show ()
	A short way to call GraphicDisplayDevice::show(&canvas, anchor x, anchor y).
	GraphicWidget (GraphicDisplayDevice *graphic_display_screen, struct_ConfigGraphicWidget graph_cfg, CanvasFormat canvas_format, Model *displayed_object=nullptr)
	Construct a new Graphic Widget object.
	GraphicWidget (GraphicDisplayDevice *graphic_display_screen, struct_ConfigTextWidget text_cfg, CanvasFormat canvas_format, Model *displayed_object=nullptr)
	Construct a new Graphic Widget object from the TextWidget Constructor.
	GraphicWidget (GraphicDisplayDevice *graphic_display_screen, struct_ConfigTextWidget text_cfg, CanvasFormat canvas_format, size_t frame_width, size_t frame_height, Model *displayed_object=nullptr)
	Construct a new Graphic Widget object from the TextWidget Constructor.
virtual	~GraphicWidget ()
	Destroy the Widget object.
struct_ConfigGraphicWidget	get_graph_frame_config ()
	Get the graphic frame config object.
void	hline (uint8_t x, uint8_t y, size_t w, ColorIndex color=ColorIndex::WHITE)
	Draw a color horizontal line, starting at frame position (x,y), on w number of pixel.
void	vline (uint8_t x, uint8_t y, size_t h, ColorIndex color=ColorIndex::WHITE)
	Draw a color vertical line, starting at frame position (x,y), on w number of pixel.
void	line (int x0, int y0, int x1, int y1, ColorIndex color=ColorIndex::WHITE)
	Draw a color line, starting at frame position (x0,y0), ending at frame position (x1,y1).
void	rect (uint8_t start_x, uint8_t start_y, size_t w, size_t h, bool fill=false, ColorIndex color=ColorIndex::WHITE)
	Draw a rectangle, starting at frame position (x,y), w wide and h high.
void	circle (int radius, int x_center, int y_center, bool fill=false, ColorIndex color=ColorIndex::WHITE)
	draw a cercle of size radius, centered at (x_center, y_center) https://fr.wikipedia.org/wiki/Algorithme_de_trac%C3%A9_d%27arc_de_cercle_de_Bresenham https://en.wikipedia.org/wiki/Midpoint_circle_algorithm procédure tracerCercle (entier rayon, entier x_centre, entier y_centre) déclarer entier x, y, m ; x ← 0 ; y ← rayon ; // on se place en haut du cercle m ← 5 - 4*rayon ; // initialisation Tant que x <= y // tant qu'on est dans le second octant tracerPixel( x+x_centre, y+y_centre ) ; tracerPixel( y+x_centre, x+y_centre ) ; tracerPixel( -x+x_centre, y+y_centre ) ; tracerPixel( -y+x_centre, x+y_centre ) ; tracerPixel( x+x_centre, -y+y_centre ) ; tracerPixel( y+x_centre, -x+y_centre ) ; tracerPixel( -x+x_centre, -y+y_centre ) ; tracerPixel( -y+x_centre, -x+y_centre ) ; si m > 0 alors //choix du point F y ← y - 1 ; m ← m - 8*y ; fin si ; x ← x + 1 ; m ← m + 8*x + 4 ; fin tant que ; fin de procédure ;
Public Member Functions inherited from Widget
	Widget (Model *actual_displayed_model, DisplayDevice *display_device=nullptr)
	contructor for generic widget
void	add_widget (Widget *_sub_widget)
	add sub_widget to the current widget
void	set_display_device (DisplayDevice *_new_display_device)
	Set the display screen object.

Protected Attributes
std::vector< int >	values
	the set of values for the bargraph
uint8_t	number_of_bar
	number of values in the bargraph
Protected Attributes inherited from GraphicWidget
bool	widget_with_border {false}
	if true, the widget is surrounded by a one-pixel border
size_t	widget_width {128}
	As a widget can be surrounded by a border, the actual widget width is not the associated framebuffer width.
size_t	widget_height {8}
	As a widget can be surrounded by a border, the actual widget height is not the associated framebuffer height.
uint8_t	widget_start_x
	this is the actual horizontal start of the widget drawing area, taken into account the presence of border.
uint8_t	widget_start_y
	this is the actual vertical start of the widget drawing area, taken into account the presence of border.
uint8_t	widget_border_width
	this is the border size of the widget. 0 if no border, 1 if border
Protected Attributes inherited from Widget
Model *	actual_displayed_model {nullptr}
	a pointer to the Model actually displayed by the widget
std::vector< Widget * >	widgets
	A widget can be composed by several widgets.

Private Member Functions
uint8_t	convert_level_value_to_px (int level)
	the value to pixel x-coordinate converter
void	draw_bar (uint8_t bin_index)
	the function that draw a bar in the widget

Private Attributes
uint8_t	bar_spacing
	the number of pixel that separates each bar (usually 1 pixel)
uint8_t	bar_height
	the computed height of each bar, according to the widget height, the number of bar and the space between bars
uint8_t	bar_width
	the computed bar width. Usually the widget width.
uint8_t	px_max
	the computed equivalent of max level value of the bar in x-coordinate
uint8_t	px_min
	the computed equivalent of min level value of the bar in x-coordinate
float	level_coef
	the computed proportional coeficient of the value to pixel converter
int	level_offset
	the computed offset of the value to pixel converter

Additional Inherited Members
Public Attributes inherited from GraphicWidget
Canvas *	canvas
	the associated canvas in which the widget writes text and draws graphics
uint8_t	widget_anchor_x
	location in x of the widget within the hosting framebuffer
uint8_t	widget_anchor_y
	location in y of the widget within the hosting framebuffer
Public Attributes inherited from Widget
DisplayDevice *	display_device {nullptr}
	the display device where the attached to the frame buffer
Protected Member Functions inherited from GraphicWidget
void	clear_widget ()
	fill the graphic pixel buffer with 0x00.

Detailed Description

the widget that display an horizontal bargraph

Constructor & Destructor Documentation

WidgetHorizontalBargraph()

WidgetHorizontalBargraph::WidgetHorizontalBargraph	(	ModelBargraph *	bargraph_model,
		GraphicDisplayDevice *	graphic_display_screen,
		struct_ConfigGraphicWidget	graph_cfg,
		CanvasFormat	format,
		uint8_t	bar_spacing = 1 )

Construct a new Widget Horizontal Bargraph object.

Parameters

bargraph_model	a pointer to the mactual displayed model
graphic_display_screen	a pointer to the display device on which the widget is drawn
graph_cfg	the configuration data structure of the graphic framebuffer
format	the format of the associated canvas
bar_spacing	the number of pixel between each bar. Default to 1.

Here is the call graph for this function:

Member Function Documentation

convert_level_value_to_px()

uint8_t WidgetHorizontalBargraph::convert_level_value_to_px ( int level )

private

the value to pixel x-coordinate converter

Parameters

level

the input value

Returns

the x-coordinate

Here is the caller graph for this function:

draw()

void WidgetHorizontalBargraph::draw ( )

virtual

the function that draw the widget

Implements Widget.

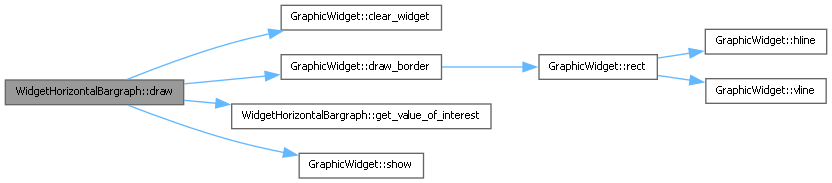

Here is the call graph for this function:

draw_bar()

void WidgetHorizontalBargraph::draw_bar ( uint8_t bin_index )

private

the function that draw a bar in the widget

Parameters

bin_index

the rank of the bar

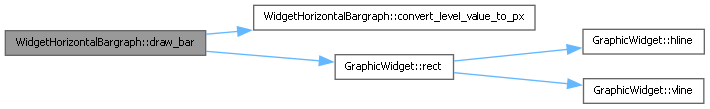

Here is the call graph for this function:

Here is the caller graph for this function:

get_value_of_interest()

void WidgetHorizontalBargraph::get_value_of_interest ( )

virtual

A pure virtual method that results in the transfer of the displayed values of the displayed model to the widget.

Implements GraphicWidget.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• widget_bargraph.h
• widget_bargraph.cpp
