KY040 Class Reference

This class implement the module device KY040 which is a rotary encoder with a centrl switch push button. More...

#include <ky040.h>

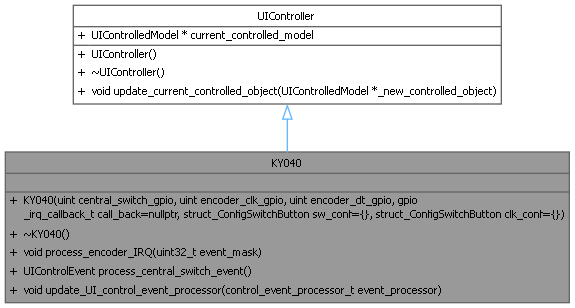

Inheritance diagram for KY040:

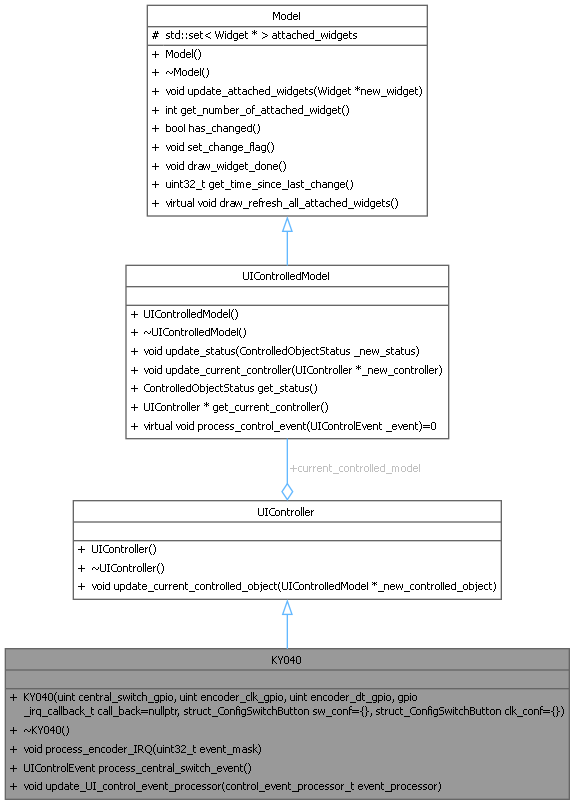

Collaboration diagram for KY040:

Public Member Functions
	KY040 (uint central_switch_gpio, uint encoder_clk_gpio, uint encoder_dt_gpio, gpio_irq_callback_t call_back=nullptr, struct_ConfigSwitchButton sw_conf={}, struct_ConfigSwitchButton clk_conf={})
	Construct a new KY040 object.
void	process_encoder_IRQ (uint32_t event_mask)
	the call back function used to hide encoder from KY040 user
UIControlEvent	process_central_switch_event ()
	the function used to mask the central switch button from KY040 user
void	update_UI_control_event_processor (control_event_processor_t event_processor)
	the update control event processor function used to hide encoder from KY040 user
Public Member Functions inherited from UIController
	UIController ()
	create a UIController object
	~UIController ()
	Destroy the UIController object.
void	update_current_controlled_object (UIControlledModel *_new_controlled_object)
	if the current controlled object is different from _new_controlled_object, change the current controlled object this new one. By he same time, The controller of the new controlled object is updated.

Private Attributes
SwitchButton	central_switch
	the internal part of KY040 that behaves as a simple switch button
RotaryEncoder	encoder
	the internal part of the KY040 that behaves as a rotary encoder

Additional Inherited Members
Public Attributes inherited from UIController
UIControlledModel *	current_controlled_model {nullptr}
	The reference to the Model currently under control.

Detailed Description

This class implement the module device KY040 which is a rotary encoder with a centrl switch push button.

It inherits from UIController, because most of the time it will be used in a UI context. Otherwise, a separate implementation of RotaryEncoder aand/or SwitchButton will be suficient.

Constructor & Destructor Documentation

KY040()

KY040::KY040	(	uint	central_switch_gpio,
		uint	encoder_clk_gpio,
		uint	encoder_dt_gpio,
		gpio_irq_callback_t	call_back = nullptr,
		struct_ConfigSwitchButton	sw_conf = {},
		struct_ConfigSwitchButton	clk_conf = {} )

Construct a new KY040 object.

Parameters

central_switch_gpio	The GPIO pin connected to the central switch push button
encoder_clk_gpio	The GPIO pin connected to the clock signal that trig the IRQ on the rotary encoder
encoder_dt_gpio	The GPIO pin connected to the data signal that indicates the direction of the rotary encoder
call_back	The interupt service routine call by the clock signal IRQ
sw_conf	The central switch push button configuration for debounce processing
clk_conf	The clock signal configuration for debounce processing

Here is the call graph for this function:

Member Function Documentation

process_central_switch_event()

UIControlEvent KY040::process_central_switch_event

(

)

the function used to mask the central switch button from KY040 user

Returns

UIControlEvent

process_encoder_IRQ()

void KY040::process_encoder_IRQ

(

uint32_t

event_mask

)

the call back function used to hide encoder from KY040 user

Parameters

event_mask

the IRQ data returned by the interrupt manager

update_UI_control_event_processor()

void KY040::update_UI_control_event_processor

(

control_event_processor_t

event_processor

)

the update control event processor function used to hide encoder from KY040 user

Parameters

event_processor

a function pointer compliant with control_event_processor_t

---

The documentation for this class was generated from the following files:

• ky040.h
• ky040.cpp
