rtos_HW_I2C_Master Class Reference

This is a C++ wrapper for the original pico SDK i2c master API, adapted to FreeRTOS environment. More...

#include <rtos_hw_i2c.h>

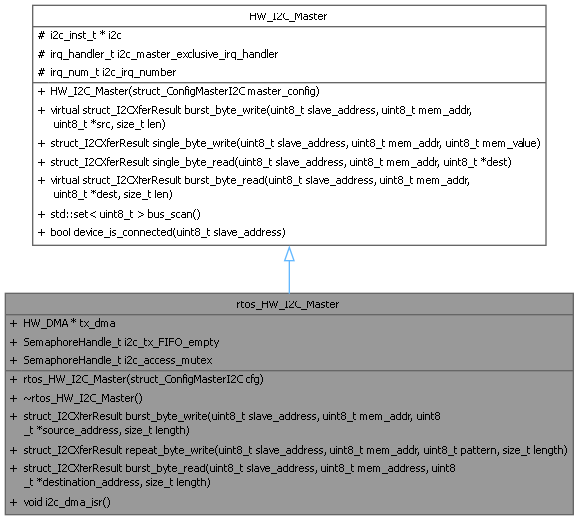

Inheritance diagram for rtos_HW_I2C_Master:

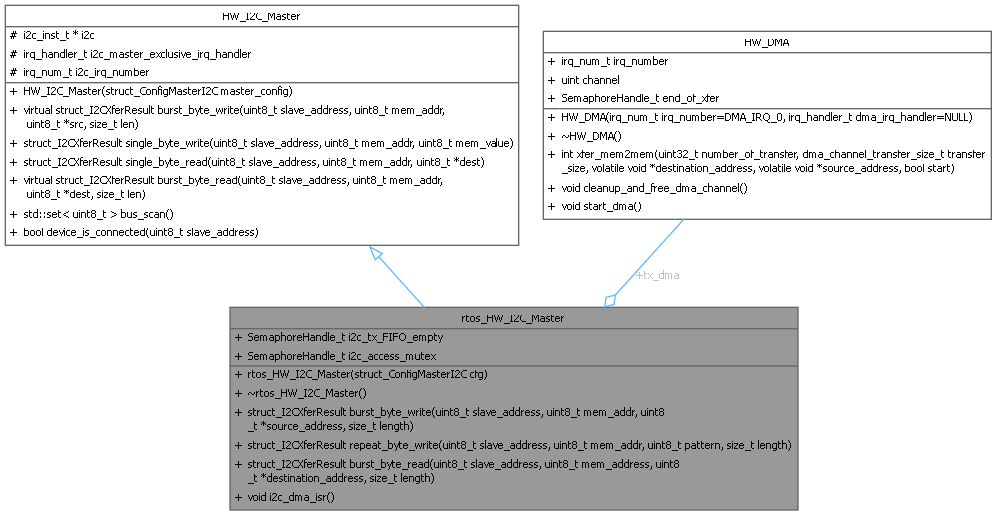

Collaboration diagram for rtos_HW_I2C_Master:

Public Member Functions
	rtos_HW_I2C_Master (struct_ConfigMasterI2C cfg)
	Constructor of the class.
	~rtos_HW_I2C_Master ()
	Destructor of the class.
struct_I2CXferResult	burst_byte_write (uint8_t slave_address, uint8_t mem_addr, uint8_t *source_address, size_t length)
	a function member to write a burst of data to a slave device, using DMA and FreeRTOS queue
struct_I2CXferResult	repeat_byte_write (uint8_t slave_address, uint8_t mem_addr, uint8_t pattern, size_t length)
	a function member to write a burst of data to a slave device, using DMA and FreeRTOS queue
struct_I2CXferResult	burst_byte_read (uint8_t slave_address, uint8_t mem_address, uint8_t *destination_address, size_t length)
	a convenient C++ member wrapper to read a block of data starting at a slave memory address, using DMA and FreeRTOS queue
void	i2c_dma_isr ()
	the I2C IRQ handler, to be called in the main program IRQ map
Public Member Functions inherited from HW_I2C_Master
	HW_I2C_Master (struct_ConfigMasterI2C master_config)
	Construct a new hw i2c master object.
struct_I2CXferResult	single_byte_write (uint8_t slave_address, uint8_t mem_addr, uint8_t mem_value)
	a convenient C++ member wrapper to write a single byte at a slave memory address. The operation is bounded by a timeout.
struct_I2CXferResult	single_byte_read (uint8_t slave_address, uint8_t mem_addr, uint8_t *dest)
	a convenient C++ member wrapper to read a single byte at a slave memory address. The operation is bounded by a timeout.
std::set< uint8_t >	bus_scan ()
	A utility that scan the I2C bus and return the set of answering devices.
bool	device_is_connected (uint8_t slave_address)
	utility to know if a device is connected

Public Attributes
HW_DMA *	tx_dma
	the DMA channel used for I2C TX
SemaphoreHandle_t	i2c_tx_FIFO_empty
	semaphore to signal the TX FIFO of I2C is empty
SemaphoreHandle_t	i2c_access_mutex
	semaphore to protect access to the I2C bus

Additional Inherited Members
Protected Attributes inherited from HW_I2C_Master
i2c_inst_t *	i2c
	the i2c hardware instance of the Pico that handles the i2c master
irq_handler_t	i2c_master_exclusive_irq_handler = NULL
	a function pointer to the IRQ i2c_master_exclusive_handler, to the program that manage the I2C IRQ when used with DMA
irq_num_t	i2c_irq_number
	the attached irq to the i2c instance

Detailed Description

This is a C++ wrapper for the original pico SDK i2c master API, adapted to FreeRTOS environment.

Constructor & Destructor Documentation

rtos_HW_I2C_Master()

rtos_HW_I2C_Master::rtos_HW_I2C_Master

(

struct_ConfigMasterI2C

cfg

)

Constructor of the class.

Parameters

cfg	the configuration structure for the I2C master

Here is the call graph for this function:

Member Function Documentation

burst_byte_read()

struct_I2CXferResult rtos_HW_I2C_Master::burst_byte_read ( uint8_t slave_address, uint8_t mem_address, uint8_t * destination_address, size_t length )

virtual

a convenient C++ member wrapper to read a block of data starting at a slave memory address, using DMA and FreeRTOS queue

Parameters

slave_address	the slave address
mem_address	the starting address of slave memory to read from
destination_address	Pointer to buffer to receive data
length	the size of the block of data

Returns

struct_I2CXferResult code error

Reimplemented from HW_I2C_Master.

burst_byte_write()

struct_I2CXferResult rtos_HW_I2C_Master::burst_byte_write ( uint8_t slave_address, uint8_t mem_addr, uint8_t * source_address, size_t length )

virtual

a function member to write a burst of data to a slave device, using DMA and FreeRTOS queue

Parameters

slave_address	the 7-bit I2C slave address
mem_addr	the adresse to write in the slave peripheral
source_address	the address of the data to send
length	the number of data to send

Returns

struct_I2CXferResult code error

Reimplemented from HW_I2C_Master.

repeat_byte_write()

struct_I2CXferResult rtos_HW_I2C_Master::repeat_byte_write	(	uint8_t	slave_address,
		uint8_t	mem_addr,
		uint8_t	pattern,
		size_t	length )

a function member to write a burst of data to a slave device, using DMA and FreeRTOS queue

Parameters

slave_address	the 7-bit I2C slave address
mem_addr	the adresse to write in the slave peripheral
pattern	the data to send
length	the number of time te byte at sourcedata to send

Returns

---

The documentation for this class was generated from the following files:

• rtos_hw_i2c.h
• rtos_hw_i2c.cpp
