rtos_HW_SPI_Master Class Reference

This is a C++ wrapper for the original pico SDK spi master API, adapted to FreeRTOS environment. More...

#include <rtos_hw_spi.h>

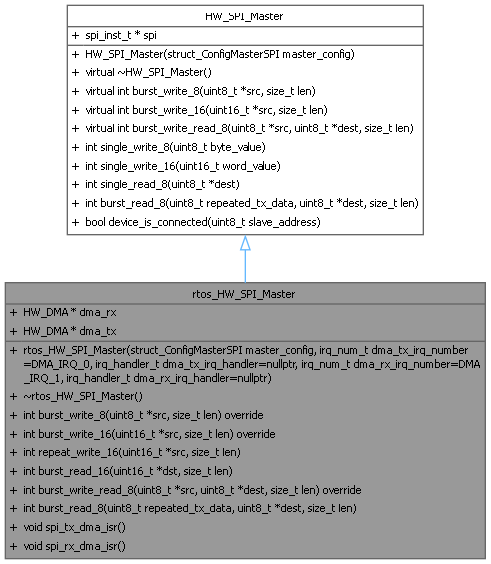

Inheritance diagram for rtos_HW_SPI_Master:

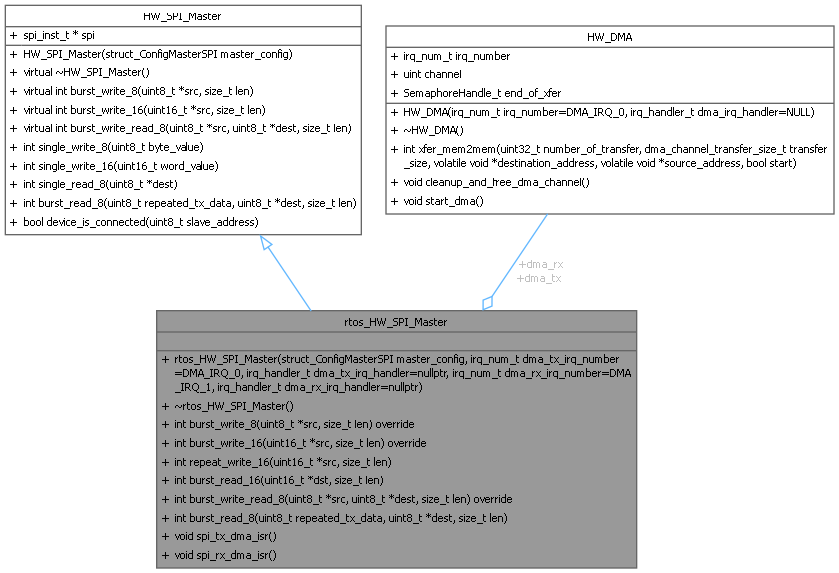

Collaboration diagram for rtos_HW_SPI_Master:

Public Member Functions
	rtos_HW_SPI_Master (struct_ConfigMasterSPI master_config, irq_num_t dma_tx_irq_number=DMA_IRQ_0, irq_handler_t dma_tx_irq_handler=nullptr, irq_num_t dma_rx_irq_number=DMA_IRQ_1, irq_handler_t dma_rx_irq_handler=nullptr)
	Construct a new hw spi master object.
int	burst_write_8 (uint8_t *src, size_t len) override
	send a serie of 8 bit data on the SPI MOSI port DMA not implemented
int	burst_write_16 (uint16_t *src, size_t len) override
	send a serie of 16 bit data on the SPI MOSI port. Use DMA.
int	repeat_write_16 (uint16_t *src, size_t len)
	repeat a single 16 bit data on the SPI MOSI port. Use DMA.
int	burst_read_16 (uint16_t *dst, size_t len)
	read a serie of 16 bit data on the SPI MISO port. Use DMA.
int	burst_write_read_8 (uint8_t *src, uint8_t *dest, size_t len) override
	read / write a serie of 8 bit data on the SPI MISO/MOSI ports DMA not implemented
int	burst_read_8 (uint8_t repeated_tx_data, uint8_t *dest, size_t len)
	read a serie of byte on the SPI MISO port DMA not implemented
void	spi_tx_dma_isr ()
	ISR handler for SPI TX DMA.
void	spi_rx_dma_isr ()
	ISR handler for SPI RX DMA.
Public Member Functions inherited from HW_SPI_Master
	HW_SPI_Master (struct_ConfigMasterSPI master_config)
	Construct a new hw spi master object.
int	single_write_8 (uint8_t byte_value)
	write a single byte on the SPI MOSI port
int	single_write_16 (uint16_t word_value)
	write a single 16bit word on the SPI MOSI port
int	single_read_8 (uint8_t *dest)
	read a single byte on the SPI MISO port
int	burst_read_8 (uint8_t repeated_tx_data, uint8_t *dest, size_t len)
	read a serie of byte on the SPI MISO port
bool	device_is_connected (uint8_t slave_address)
	a test that checks if the slave_address device is connected

Public Attributes
HW_DMA *	dma_rx
	the DMA channel used for SPI RX
HW_DMA *	dma_tx
	the DMA channel used for SPI TX
Public Attributes inherited from HW_SPI_Master
spi_inst_t *	spi
	the spi hardware instance of the Pico that handles the spi master

Detailed Description

This is a C++ wrapper for the original pico SDK spi master API, adapted to FreeRTOS environment.

Constructor & Destructor Documentation

rtos_HW_SPI_Master()

rtos_HW_SPI_Master::rtos_HW_SPI_Master	(	struct_ConfigMasterSPI	master_config,
		irq_num_t	dma_tx_irq_number = DMA_IRQ_0,
		irq_handler_t	dma_tx_irq_handler = nullptr,
		irq_num_t	dma_rx_irq_number = DMA_IRQ_1,
		irq_handler_t	dma_rx_irq_handler = nullptr )

Construct a new hw spi master object.

Parameters

master_config	the data structure that contains SPI configuration
dma_tx_irq_number	the DMA IRQ number attached to TX DMA
dma_tx_irq_handler	the DMA IRQ handler attached to TX DMA
dma_rx_irq_number	the DMA IRQ number attached to RX DMA
dma_rx_irq_handler	the DMA IRQ handler attached to RX DMA

Here is the call graph for this function:

Member Function Documentation

burst_read_16()

int rtos_HW_SPI_Master::burst_read_16	(	uint16_t *	dst,
		size_t	len )

read a serie of 16 bit data on the SPI MISO port. Use DMA.

Parameters

dst	the destination of the data
len	the length of the serie

Returns

error code

burst_read_8()

int rtos_HW_SPI_Master::burst_read_8	(	uint8_t	repeated_tx_data,
		uint8_t *	dest,
		size_t	len )

read a serie of byte on the SPI MISO port DMA not implemented

Parameters

repeated_tx_data	the byte sent on MOSI port during the read transfer
dest	the destination that receives the data
len	the length of the serie

Returns

error code

burst_write_16()

int rtos_HW_SPI_Master::burst_write_16 ( uint16_t * src, size_t len )

overridevirtual

send a serie of 16 bit data on the SPI MOSI port. Use DMA.

Parameters

src	the source of the data
len	the length of the serie

Returns

error code

Reimplemented from HW_SPI_Master.

burst_write_8()

int rtos_HW_SPI_Master::burst_write_8 ( uint8_t * src, size_t len )

overridevirtual

send a serie of 8 bit data on the SPI MOSI port DMA not implemented

Parameters

src	the source of the data
len	the lenght of the serie

Returns

int the number of byte sent

Reimplemented from HW_SPI_Master.

burst_write_read_8()

int rtos_HW_SPI_Master::burst_write_read_8 ( uint8_t * src, uint8_t * dest, size_t len )

overridevirtual

read / write a serie of 8 bit data on the SPI MISO/MOSI ports DMA not implemented

Parameters

src	the source of the data
dest	the destination of the data
len	the length of the serie

Returns

error code

Reimplemented from HW_SPI_Master.

repeat_write_16()

int rtos_HW_SPI_Master::repeat_write_16	(	uint16_t *	src,
		size_t	len )

repeat a single 16 bit data on the SPI MOSI port. Use DMA.

Parameters

src	the source of the data
len	the length of the repetition

Returns

error code

---

The documentation for this class was generated from the following files:

• rtos_hw_spi.h
• rtos_hw_spi.cpp
