rtos_SSD1306 Class Reference

FreeRTOS compliant SSD1306 128x64 pixel OLED display device driver with I2C interface. More...

#include <ssd1306.h>

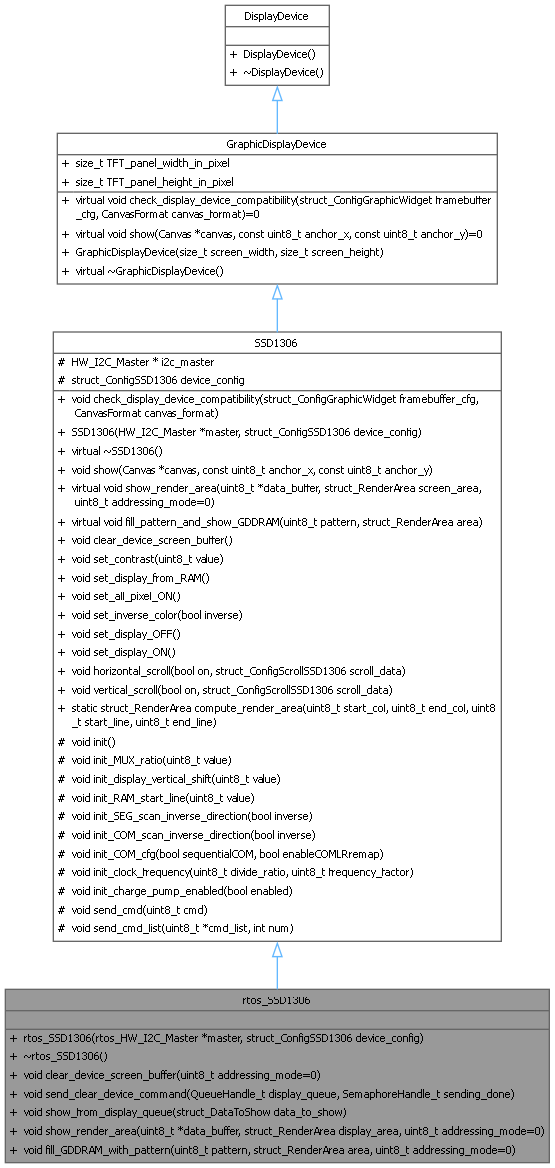

Inheritance diagram for rtos_SSD1306:

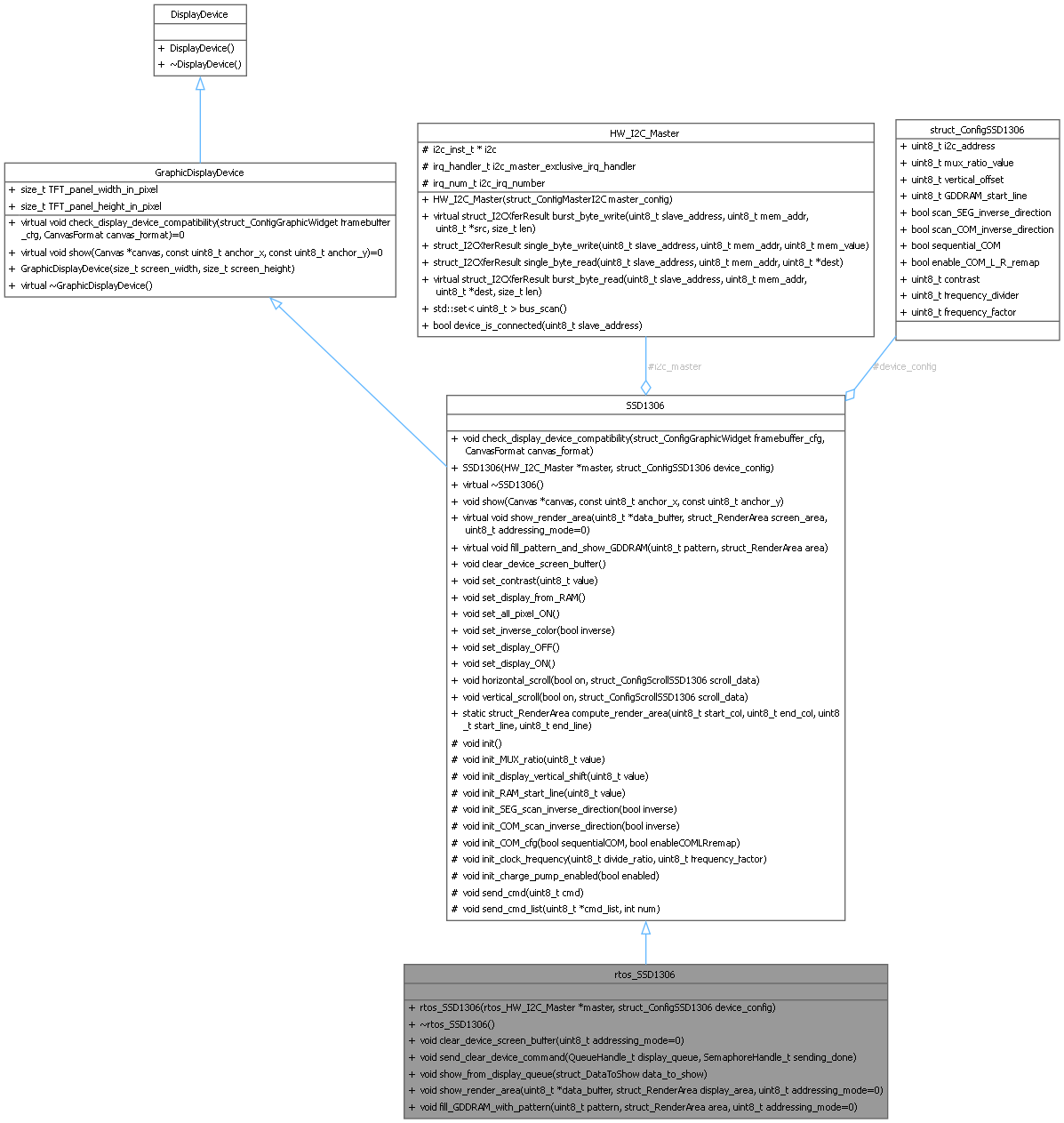

Collaboration diagram for rtos_SSD1306:

Public Member Functions
	rtos_SSD1306 (rtos_HW_I2C_Master *master, struct_ConfigSSD1306 device_config)
	constructor for FreeRTOS compliant SSD1306 device driver.
void	clear_device_screen_buffer (uint8_t addressing_mode=0)
	write 0x00 directly into the device framebuffer (GDDRAM).
void	send_clear_device_command (QueueHandle_t display_queue, SemaphoreHandle_t sending_done)
	Send a clear screen command to the display gate keeper task.
void	show_from_display_queue (struct_DataToShow data_to_show)
	Show data from the display queue.
void	show_render_area (uint8_t *data_buffer, struct_RenderArea display_area, uint8_t addressing_mode=0)
	when we need to show a render area with a given framebuffer
void	fill_GDDRAM_with_pattern (uint8_t pattern, struct_RenderArea area, uint8_t addressing_mode=0)
	fill a pattern in the device framebuffer (GDDRAM). This is shown on display as soon as the GDDRAM buffer is transfered to the pixels. The pattern is a vertical byte representing 8 vertical pixels (refer to MONO_VLSB framebuffer format)
Public Member Functions inherited from SSD1306
void	check_display_device_compatibility (struct_ConfigGraphicWidget framebuffer_cfg, CanvasFormat canvas_format)
	A pure virtual member function. Each device must implement this method and check the compatibility of the widget parameter with the its physical limitations.
	SSD1306 (HW_I2C_Master *master, struct_ConfigSSD1306 device_config)
void	show (Canvas *canvas, const uint8_t anchor_x, const uint8_t anchor_y)
virtual void	fill_pattern_and_show_GDDRAM (uint8_t pattern, struct_RenderArea area)
	fill a pattern in the device framebuffer. this make it visible as soon as the device transfer the framebuffer to the pixels. The pattern is a vertical byte representing 8 vertical pixels (refer to MONO_VLSB framebuffer format)
void	clear_device_screen_buffer ()
	write 0x00 directly into the device framebuffer. Uses fill_pattern_and_show_GDDRAM command.
void	set_contrast (uint8_t value)
	Set the contrast object. refer to datasheet of SSD1306 device.
void	set_display_from_RAM ()
	Set the display from RAM object.
void	set_all_pixel_ON ()
	Set the all pixel ON.
void	set_inverse_color (bool inverse)
	Set the inverse color object.
void	set_display_OFF ()
	Set the display OFF object.
void	set_display_ON ()
	Set the display ON object.
void	horizontal_scroll (bool on, struct_ConfigScrollSSD1306 scroll_data)
void	vertical_scroll (bool on, struct_ConfigScrollSSD1306 scroll_data)
Public Member Functions inherited from GraphicDisplayDevice
	GraphicDisplayDevice (size_t screen_width, size_t screen_height)
	Construct a new Display Device object.
virtual	~GraphicDisplayDevice ()
	Destroy the Display Device object.

Additional Inherited Members
Static Public Member Functions inherited from SSD1306
static struct_RenderArea	compute_render_area (uint8_t start_col, uint8_t end_col, uint8_t start_line, uint8_t end_line)
	A static member function that converts the area we want to display into device specific parameters.
Public Attributes inherited from GraphicDisplayDevice
size_t	TFT_panel_width_in_pixel
	the physical width of the screen (in pixel)
size_t	TFT_panel_height_in_pixel
	the physical height of the screen (in pixel)
Protected Member Functions inherited from SSD1306
void	init ()
	the master init function that calls all others
void	init_MUX_ratio (uint8_t value)
	refer to SSD1306 data sheet for more details
void	init_display_vertical_shift (uint8_t value)
	refer to SSD1306 data sheet for more details
void	init_RAM_start_line (uint8_t value)
	refer to SSD1306 data sheet for more details
void	init_SEG_scan_inverse_direction (bool inverse)
	refer to SSD1306 data sheet for more details
void	init_COM_scan_inverse_direction (bool inverse)
	refer to SSD1306 data sheet for more details
void	init_COM_cfg (bool sequentialCOM, bool enableCOMLRremap)
	refer to SSD1306 data sheet for more details
void	init_clock_frequency (uint8_t divide_ratio, uint8_t frequency_factor)
	refer to SSD1306 data sheet for more details
void	init_charge_pump_enabled (bool enabled)
	refer to SSD1306 data sheet for more details
void	send_cmd (uint8_t cmd)
	refer to SSD1306 data sheet for more details
void	send_cmd_list (uint8_t *cmd_list, int num)
	refer to SSD1306 data sheet for more details
Protected Attributes inherited from SSD1306
HW_I2C_Master *	i2c_master
	the I2C master that control the SSD1306 display
struct_ConfigSSD1306	device_config
	the SSD1306 device configuration

Detailed Description

FreeRTOS compliant SSD1306 128x64 pixel OLED display device driver with I2C interface.

Constructor & Destructor Documentation

rtos_SSD1306()

rtos_SSD1306::rtos_SSD1306	(	rtos_HW_I2C_Master *	master,
		struct_ConfigSSD1306	device_config )

constructor for FreeRTOS compliant SSD1306 device driver.

Parameters

master	the I2C master controller, compliant with FreeRTOS.
device_config	The configuration data of the display device.

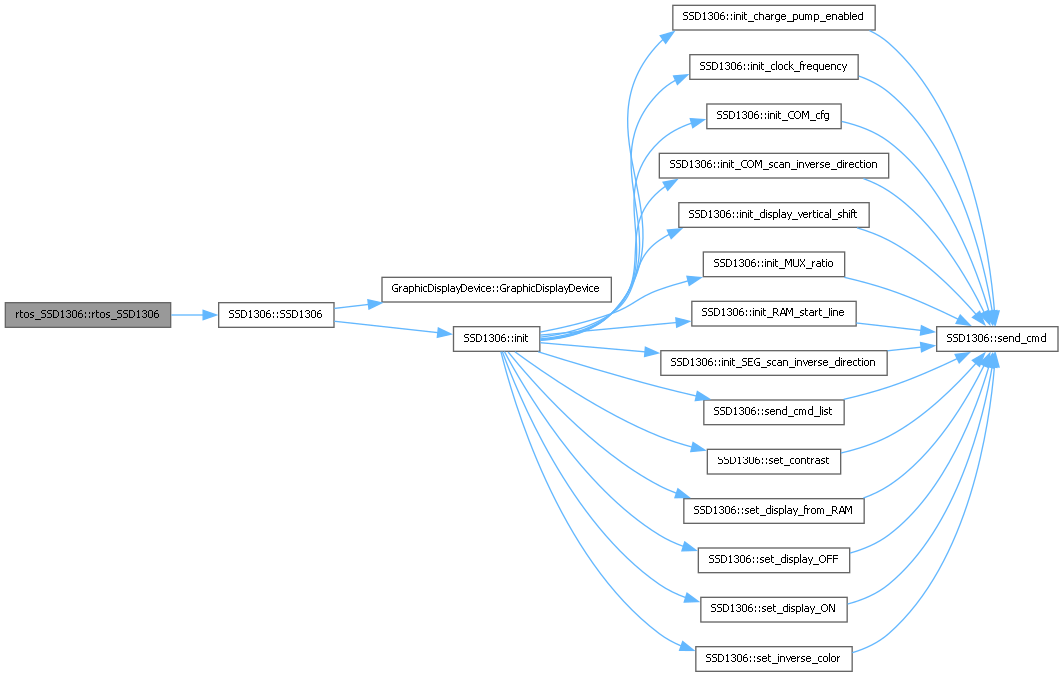

Here is the call graph for this function:

Member Function Documentation

clear_device_screen_buffer()

void rtos_SSD1306::clear_device_screen_buffer

(

uint8_t

addressing_mode = 0

)

write 0x00 directly into the device framebuffer (GDDRAM).

Parameters

addressing_mode

the way the data is written to the GDDRAM

Here is the call graph for this function:

fill_GDDRAM_with_pattern()

void rtos_SSD1306::fill_GDDRAM_with_pattern	(	uint8_t	pattern,
		struct_RenderArea	area,
		uint8_t	addressing_mode = 0 )

fill a pattern in the device framebuffer (GDDRAM). This is shown on display as soon as the GDDRAM buffer is transfered to the pixels. The pattern is a vertical byte representing 8 vertical pixels (refer to MONO_VLSB framebuffer format)

Parameters

pattern	the vertical pattern to copy in a set of 8 vertical pixel
area	the location of the area to copy the pattern
addressing_mode	the way the data is written ti the GDDRAM

Here is the call graph for this function:

Here is the caller graph for this function:

send_clear_device_command()

void rtos_SSD1306::send_clear_device_command	(	QueueHandle_t	display_queue,
		SemaphoreHandle_t	sending_done )

Send a clear screen command to the display gate keeper task.

Parameters

display_queue	The queue used to send data to the display gate keeper task.
sending_done	A semaphore to signal when the sending is done.

show_from_display_queue()

void rtos_SSD1306::show_from_display_queue

(

struct_DataToShow

data_to_show

)

Show data from the display queue.

Parameters

data_to_show

The data to display.

Here is the call graph for this function:

show_render_area()

void rtos_SSD1306::show_render_area ( uint8_t * data_buffer, struct_RenderArea screen_area, uint8_t addressing_mode = 0 )

virtual

when we need to show a render area with a given framebuffer

Parameters

data_buffer
screen_area
addressing_mode

Reimplemented from SSD1306.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• ssd1306.h
• ssd1306.cpp
